Description

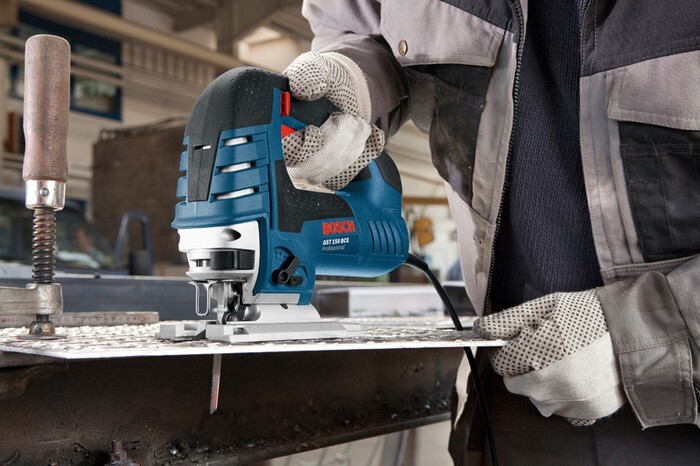

Jigsaw GST 150 BCE, The GST 150 BCE Professional is a corded, robust jigsaw for tough applications. Its bow handle with variable speed trigger makes the tool easy to manoeuver, resulting in smooth handling during operation. The jigsaw’s bend-resistant sole plate is extremely robust, delivering high performance in even the toughest jobs. Its reliable 780 W motor and constant speed deliver cuts also in the hardest materials such as thick beams. This tool is intended for curved cutting in solid wood, chipboard, and wood composites. It is compatible with the Bosch Click & Clean System as well as with other Bosch vacuum cleaners. The GST 150 BCE Professional can also make beveled cuts and features a blower, orbital action, toolfree SDS saw blade changes, and speed selection. Anti-splinter guard (2 601 016 096), Glide shoe (spare part number 2 601 099 183), Hood (spare part number 2 605 510 293), L-BOXX 136 (1 600 A01 2G0), Suction nozzle (spare part number 2 605 730 055), 1 x jigsaw blade T 144 D, Speed for Wood (available separately as set of 3: 2 608 630 560), 1/1 L-BOXX inlay for tool (1 600 A00 2UP)
Attributes
Cable length
4 m
Cutting depth in aluminium
20 mm
Cutting depth in steel
10 mm
Cutting depth in unalloyed steel
10 mm
Cutting depth in wood
150 mm
Leerlaufdrehzahl
3100 min-1
Measurement uncertainty k (sawing metal plates)
1.5 m/s²
Measurement uncertainty k (sawing wood)
1.5 m/s²
Nominal input power
780 W
Number of strokes at idle, from
500 min-1
Number of strokes at idle, up to
3100 min-1
Number of strokes at idling speed
500 - 3100 min-1
Verpackungsabmessungen (Breite x Länge x Höhe)
358 x 440 x 154 mm
Vibration emission value ah [Sawing sheet metal]
4.0 m/s²
Vibration emission value ah [Sawing wood]
7.5 m/s²
Voltage, electrical
230 V
Weight
2.7 kg
Werkzeugabmessungen (Länge)
316 mm
