Description

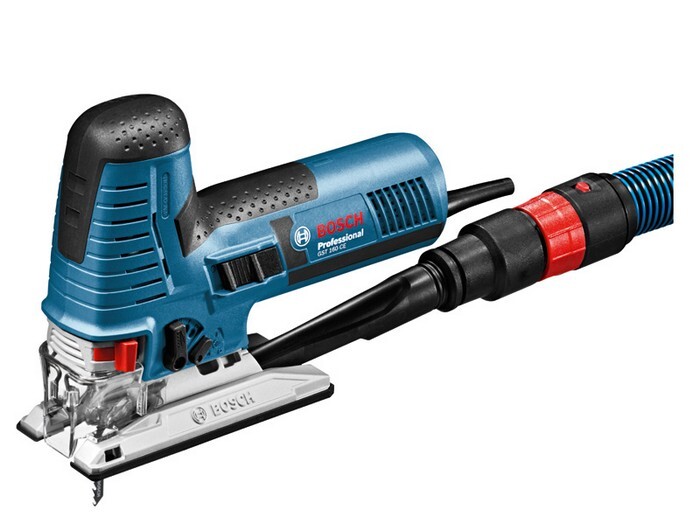

Jigsaw GST 160 CE, The GST 160 CE Professional corded jigsaw offers precision for high-end applications. Its compact, lightweight design and narrow grip provide optimal control while its barrel grip enables steady work even when cutting from underneath. The jigsaw’s patented double roller saw blade guidance reduces bending, delivering excellent cutting precision. Its reliable 800 W motor and constant speed deliver cuts in even the hardest materials. This tool is intended for curved cutting in solid wood, chipboard, and wood composites. It is compatible with the Bosch Click & Clean dust extraction system and other Bosch vacuum cleaners as well as with guide rails via an adapter. The GST 160 CE Professional also makes bevelled cuts and features a blower, an LED light, orbital action, precision control, speed selection, and tool-free SDS saw blade changes. Dust extraction adapter, L-BOXX 136 (1 600 A01 2G0), Anti-splinter guard (2 601 016 096), 1 x jigsaw blade T 144 DP, Precision for Wood (available separately as set of 3: 2 608 633 A31), 1 x jigsaw blade T 244 D, Speed for Wood (available separately as set of 3: 2 608 630 879), 1 x jigsaw blade T 308 BP, Precision for Wood (available separately as set of 3: 2 608 667 399), 1/1 L-BOXX inlay for tool (1 600 A00 2UN)
Attributes
Cutting depth in aluminium
20 mm
Cutting depth in steel
10 mm
Cutting depth in unalloyed steel
10 mm
Cutting depth in wood
160 mm
Leerlaufdrehzahl
3000 min-1
Measurement uncertainty k (sawing metal plates)
1.5 m/s²
Measurement uncertainty k (sawing wood)
1.5 m/s²
Nominal input power
800 W
Number of strokes at idle, from
800 min-1
Number of strokes at idle, up to
3000 min-1
Number of strokes at idling speed
800 - 3000 min-1
Saw, stroke length
26 mm
Verpackungsabmessungen (Breite x Länge x Höhe)
359 x 452 x 156 mm
Vibration emission value ah [Sawing sheet metal]
6.0 m/s²
Vibration emission value ah [Sawing wood]
7.5 m/s²
Voltage, electrical
230 V
Weight
2.2 kg
Werkzeugabmessungen (Länge)
324 mm
