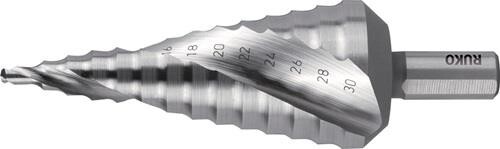

Step drill
4.0-30.0 mm HSS-Co Ruko 101052EItem-no.: 1014335Supplier number: 101052EEAN: 4007140035554
Quantity:
1 STKPackable
Item available in 5 variants:
Description
The CBN ground and spiral flutes guarantee quiet running and high cutting performance. Especially the chip flow is optimized, so even long, non-breaking chips will be removed easily. The optimized chip flow protects the cutting edges and reduces built-up edges and cold weld marks. The cone makes it easier to withdraw the tool from the material.
Attributes
Coat
Uncoated
Cutting direction
right-hand cutting
Cutting material
HSS-Co5
Drilling area
4 - 30 mm
Number of steps
14
Series
RUKO008101

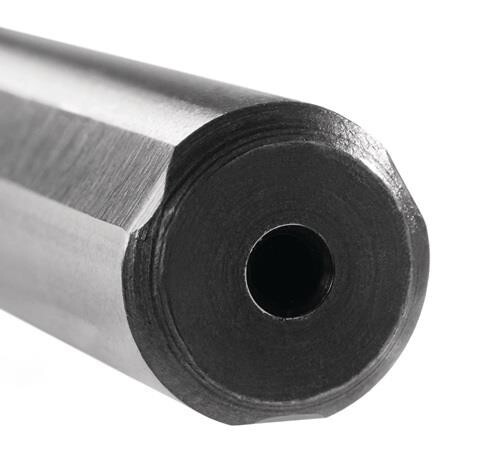

Shaft-Ø
10 mm
Total length
100 mm
Ø
4/ 6/ 8/ 10/ 12/ 14/ 16/ 18/ 20/ 22/ 24/ 26/ 28/ 30 mm
