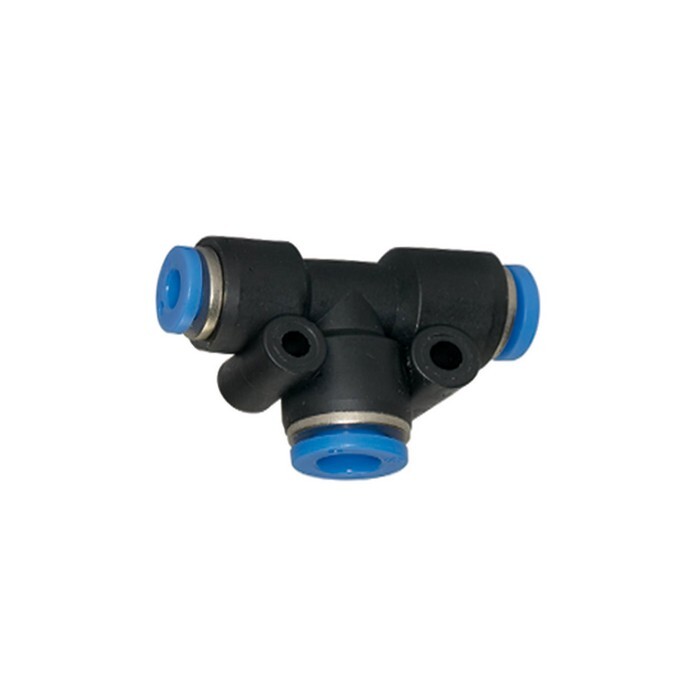

T-connector reduced
2x SD8, 1x SD6 Plastic, blue seriesItem-no.: 1114217Supplier number: 138.0806EAN: 4047322026376
PU (NWVE): 10 STKQuantity:
1 STKPackable
Item available in 8 variants:
Description
Push-in T-connector »Blue Series«, reducing, for hose exterior Ø 2x8/1x6 mm, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass. All parts are suitable for use with hoses, tubes or pipes made of plastic.
Attributes
Application range
Air, vacuum
For outer hose Ø
2x8 / 1x6 mm
L1
22,5 mm
Loosening ring
Plastic
Material
Plastic or nickel-plated brass
Medium
Compressed air, neutral and non-hazardous gases and liquids
Product range
Blue series
Recommended hose
PU or PA (nylon)
Riegler article number
109838
Temperature range max.
80 °C
Temperature range min.
-20 °C
Working pressure max.
15 bar
