T-hose connector
for hose LW 6mm brassItem-no.: 1331579Supplier number: 171 BEAN: 4047322487443
PU (PU NW): 10 PieceQuantity:
1 PiecePackable
Item available in 5 variants:
Price and stock visible after login
Description
T-hose fitting supports, for hose I.D. 6 mm, brass CW617N, Max. working pressure 10 bar, Max. medium/ambient temp. 90 °C.
Attributes
Ambient temperature max.
90 °C
For hose
LW 6 mm

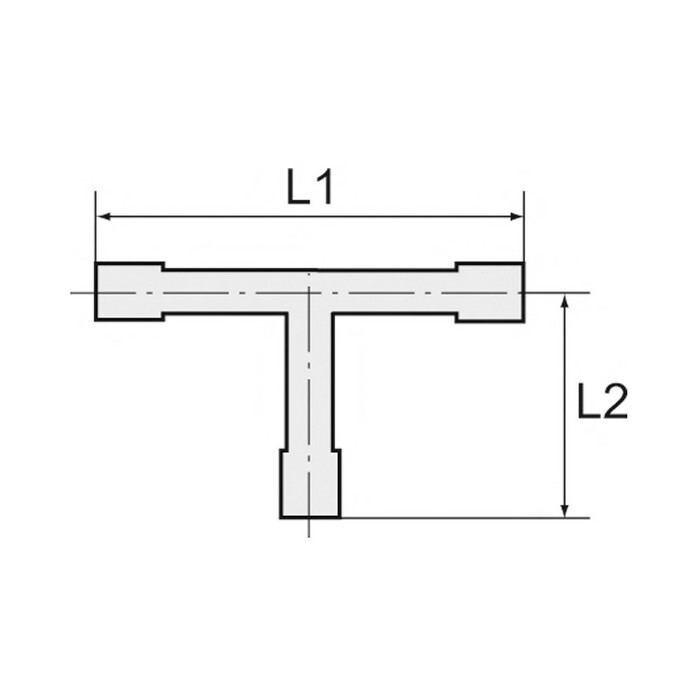

L1
38 mm
L2
19 mm
Material
Brass CW617N
Medium temperature max.
90 °C
Working pressure max.
10 bar
