Push-in T-fitting
AG 3/8", SD10, swivelling, O-ring Blue series, KU- nickel-plated brassItem-no.: 1114233Supplier number: 131.038-10EAN: 4047322025508
PU (Packaging): 10 STKQuantity:
1 STKPackable
Item available in 22 variants:
Description
Push-in T-fitting »Blue Series«, rotating, G 3/8 o., for hose exterior Ø 10 mm, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass. All parts are suitable for use with hoses, tubes or pipes made of plastic.
Attributes
Application range
Air, vacuum
For outer hose Ø
10 mm

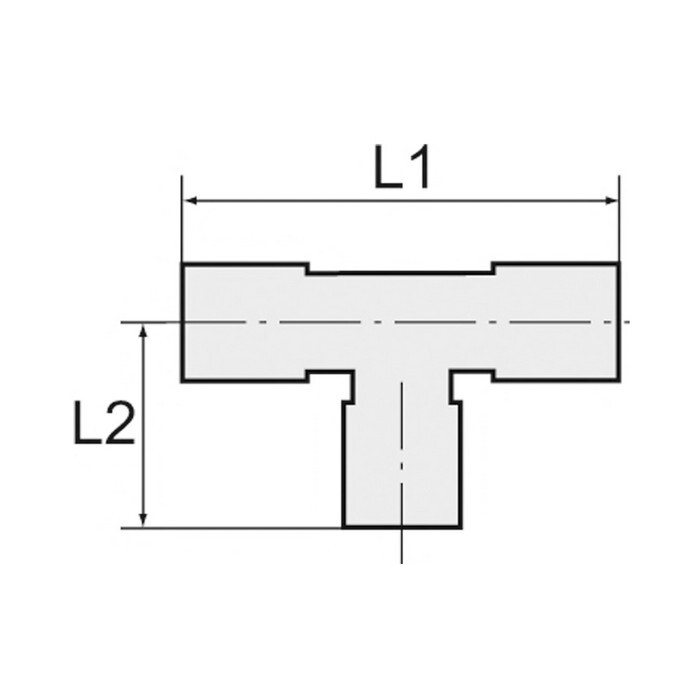

L1
53,8 mm
L2
26,1 mm
Loosening ring
Plastic
Material
Plastic or nickel-plated brass
Medium
Compressed air, neutral and non-hazardous gases and liquids
Product range
Blue series
Recommended hose
PU or PA (nylon)
Riegler article number
109483
SW
20 mm
Screw thread
G 3/8
Temperature range max.
80 °C
Temperature range min.
-20 °C
Working pressure max.
15 bar
