T-Stück
IG 3/4" x IG 3/4" x IG 3/4", 60 bar MessingItem-no.: 1110018Supplier number: 254.48EAN: 4047322066204
Quantity:
1 STKPackable
Item available in 6 variants:
Description

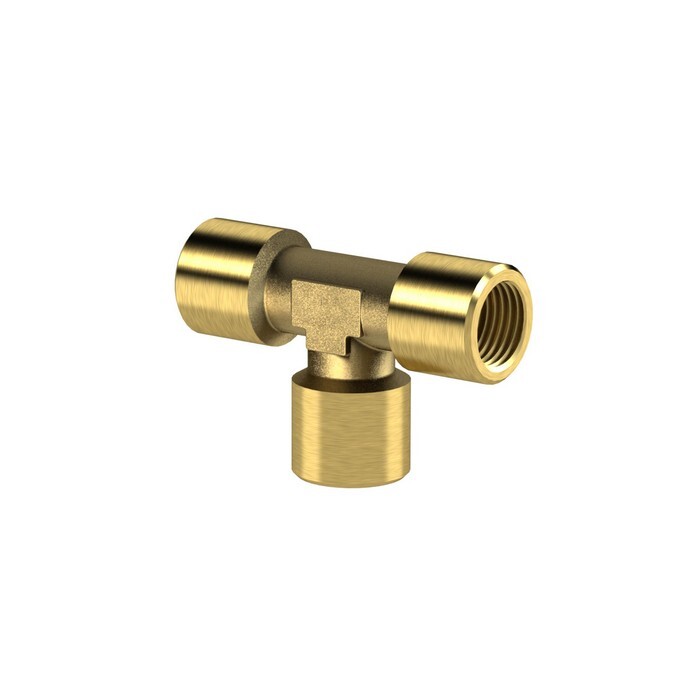

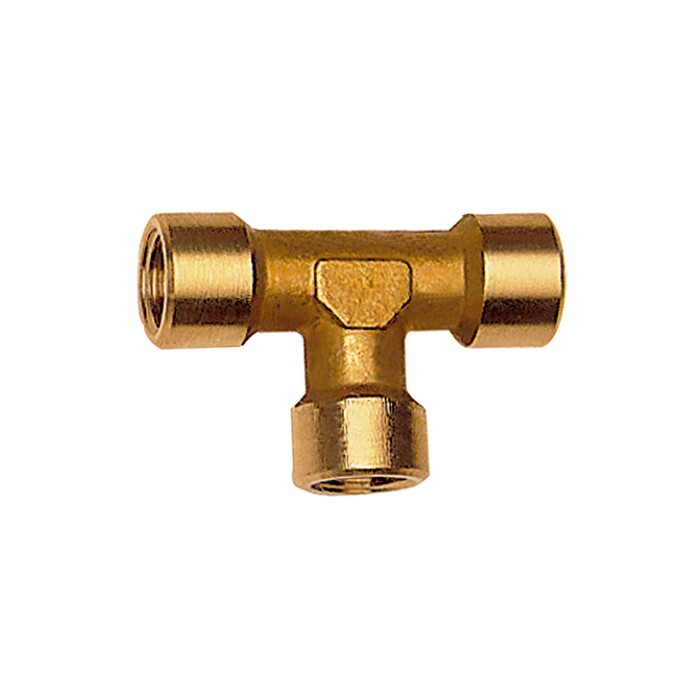

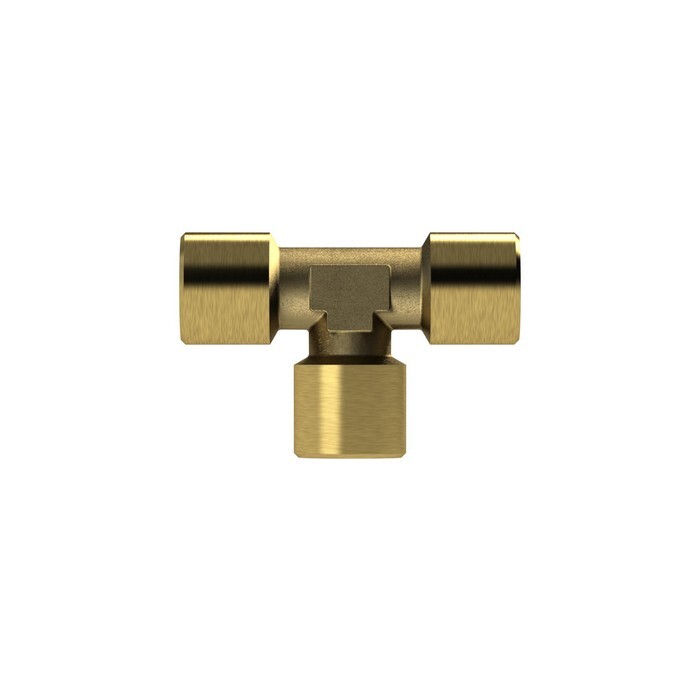

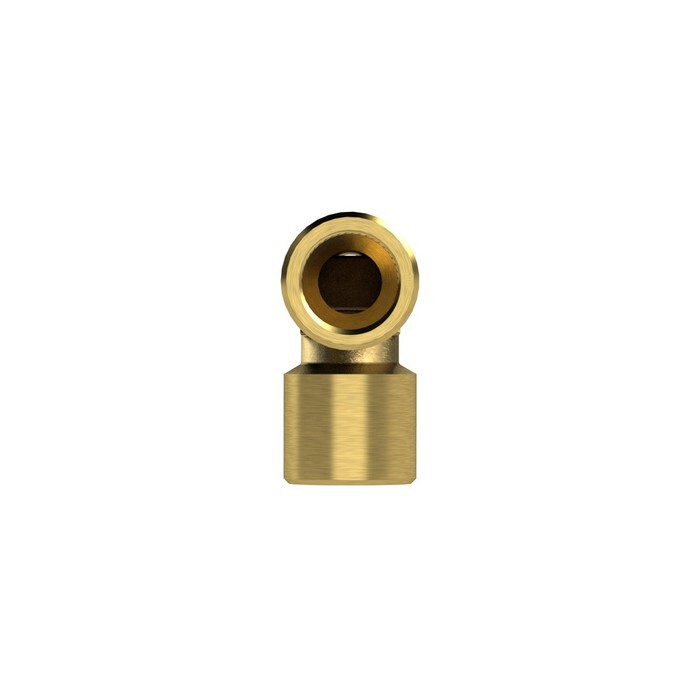

T-piece, Interior / interior / interior, G 3/4, AF 25, Operating pressure max. 60 bar, Operating temp. max. 150 °C, Bright brass
Attributes

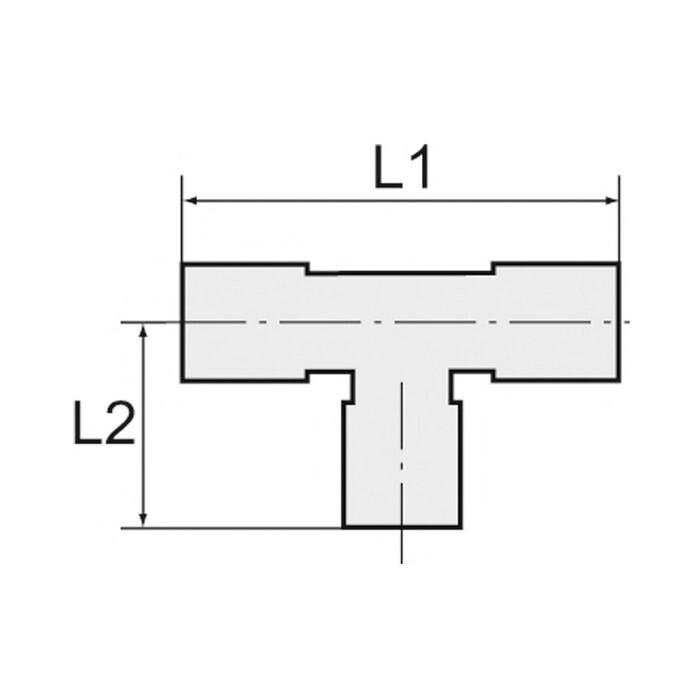

L1
73 mm
L2
36,5 mm
Max. operating pressure
60 bar
Operating temperature max.
150 °C
Riegler article number
112724
SW
25 mm
Screw thread
G 3/4
