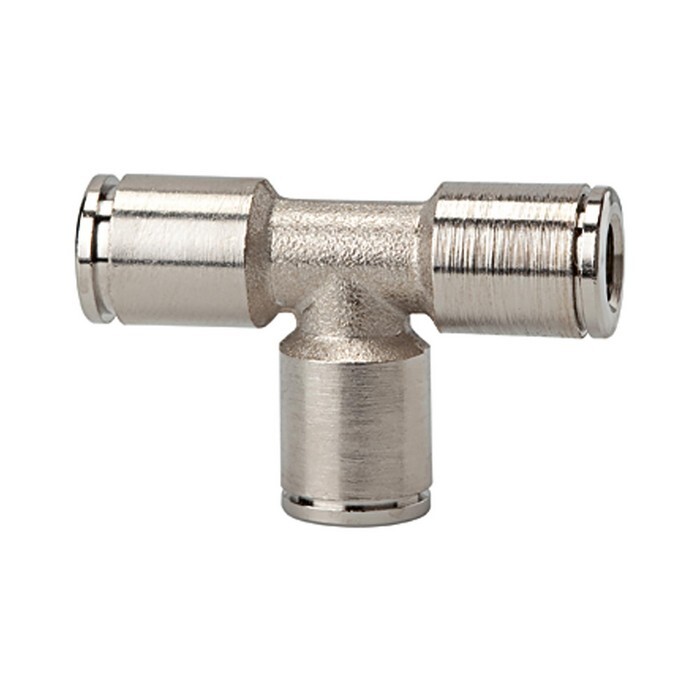

T-connector, metallica series
SD10 Nickel-plated brassItem-no.: 1176145Supplier number: 849.010EAN: 4047322279185
Quantity:
1 STK
=
1 BundlePackable
Item available in 7 variants:
Description
Push-in T-connector »metallica«, for hose exterior Ø 10, Working pressure -0. 98 to 16 bar, Operating temperature -20 °C to 150 °C All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion; all fittings in this series can thus also be used at high temperatures (medium compressedair).
Attributes
Clamping ring
Stainless steel
For outer hose Ø
10 mm
L1
50 mm
L2
25 mm
Loosening ring
Nickel-plated brass
Material
Nickel-plated brass
Operating temperature max.
150 °C
Operating temperature min.
-20 °C
Product range
metallica
Riegler article number
108991
Working pressure max.
16 bar
