Description
Drywall Screwdriver GTB 6-50, The GTB 6-50 Professional is a drywall screwdriver for universal applications that, with its motor speed of 5,000 rpm, is ideal for driving in a large number of screws quickly and effortlessly. Thanks to its 650 W power, it can screw screws with a diameter of up to 6 mm. The retractable depth stop eliminates the need to remove it for unscrewing, making work quick and easy as the depth setting remains unchanged. The drywall screwdriver is compatible with Bosch Professional auto-feed attachments that allow the job to be done in half the time. The GTB 6-50 Professional is ideally suited for screwing drywall sheets to steel or timber studs for constructing walls and ceilings. It is compatible with Bosch Professional auto-feed attachments. L-Case (1 605 438 1CR), 1 x screwdriver bit PH 2, Magnetic bit holder
Attributes
Drilling screws-Ø
6.0 mm
Idle speed
0 - 5000 min-1
Leerlaufdrehzahl, bis zu
5000 min-1
Leerlaufdrehzahl, von
0 min-1
Measurement uncertainty k (screwing)
1.0 m/s²
Nominal input power
650 W
Screw Ø, max.
6.0 mm
Tool holder
1/4'' hexagon uni without bit lock
Torque, max. (soft joint)
12 Nm
Verpackungsabmessungen (Breite x Länge x Höhe)
404 x 440 x 119 mm
Vibration emission value ah [Screws]
1.5 m/s²
Weight
1.4 kg

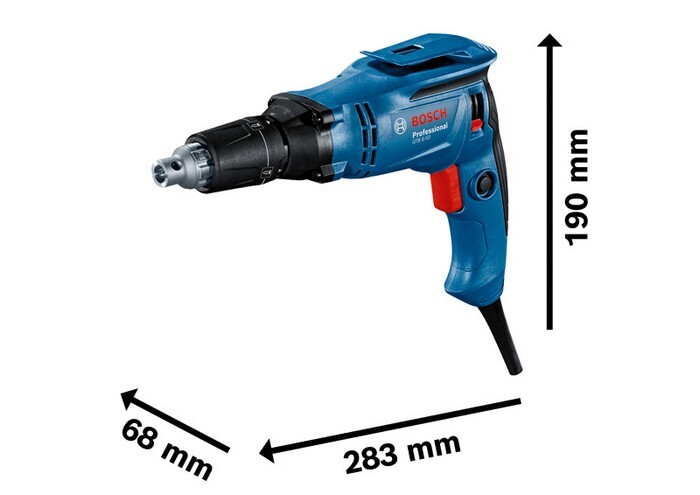

Werkzeugabmessungen (Länge)
283 mm
