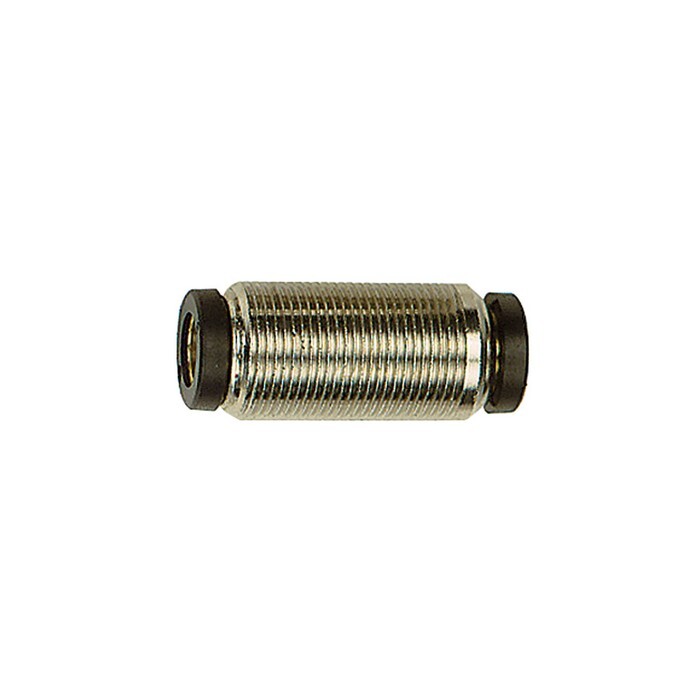

Connector, straight
M15x1, SD8, L 35.7 mm click-clock, nickel-plated brassItem-no.: 1114610Supplier number: 747.008EAN: 4047322209090
Quantity:
1 PiecePackable
Item available in 8 variants:
Connector, straight M15x1, SD8, L 35.7 mm click-clock, nickel-plated brass
xConnector, straight M13x1, SD6, L 33 mm click-clock, nickel-plated brass
Connector, straight M11x1, SD4, L 30.6 mm click-clock, nickel-plated brass
Connector, straight M20x1, SD12, L 40.7 mm click-clock, nickel-plated brass
Connector, straight M15x1, SD8, L 35.7 mm click-clock, nickel-plated brass
Connector, straight M17x1, SD10, L 39.2 mm click-clock, nickel-plated brass
Connector, straight M24x1, SD14, L 45.9 mm click-clock, nickel-plated brass
Connector, straight M8x0.75, SD3, L 18.4 mm click-clock, nickel-plated brass
Connector, straight M14x1, SD5, L 33.5 mm click-clock, nickel-plated brass
Price and stock visible after login
Description
Straight push-in connector »click-clock«, M15x1, for hose exterior Ø 8 mm, Working pressure -0.99 to 16 bar, nickel-plated brass . The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass. Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Attributes
Clamping ring
Stainless steel
For outer hose Ø
8 mm
L1
35,7 mm
Loosening ring
Hostaform
Material
Nickel-plated brass
Operating temperature max.
80 °C
Operating temperature min.
-20 °C
Product range
click-clock
Riegler article number
108724
Screw thread
M15x1,0
Working pressure max.
16 bar
