Hexagon socket screw plug and
Collar G 3/8 SW 8 MSItem-no.: 1374010Supplier number: MS290MS38EAN: 4047322500593
Quantity:
1 PiecePackable
Item available in 9 variants:
Hexagon socket screw plug and Collar G 3/8 SW 8 MS
xHexagon socket screw plug and Collar G 1/4 SW 6 MS
Hexagon socket screw plug and Collar G 1 1/2 SW 24 MS
Hexagon socket screw plug and Collar G 1/2 SW 10 MS
Hexagon socket screw plug and Collar G 3/4 SW 12 MS
Hexagon socket screw plug and collar G1/8 SW5 with collar, brass
Hexagon socket screw plug and Collar G 1 1/4 SW 22 MS
Hexagon socket screw plug and Collar G 2 SW 27 MS
Hexagon socket screw plug and Collar G 3/8 SW 8 MS
Hexagon socket screw plug and Collar G 1 SW 17 MS
Price and stock visible after login
Description
Locking screw, Hexagonal socket and flange, G 3/8, AF 8, Brass, Max. working pressure 25 bar, Max. operating temperature 150 °C.
Attributes

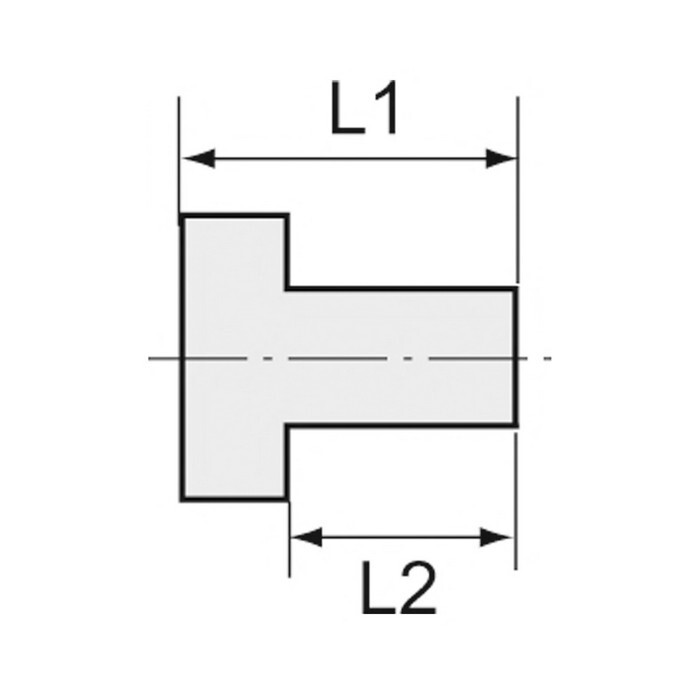

L1
12 mm
L2
9 mm
Material
Brass CW614N
Operating temperature max.
150 °C
Riegler article number
135965
SW
8 mm
Screw thread
G 3/8 hexagon socket
Working pressure max.
25 bar
