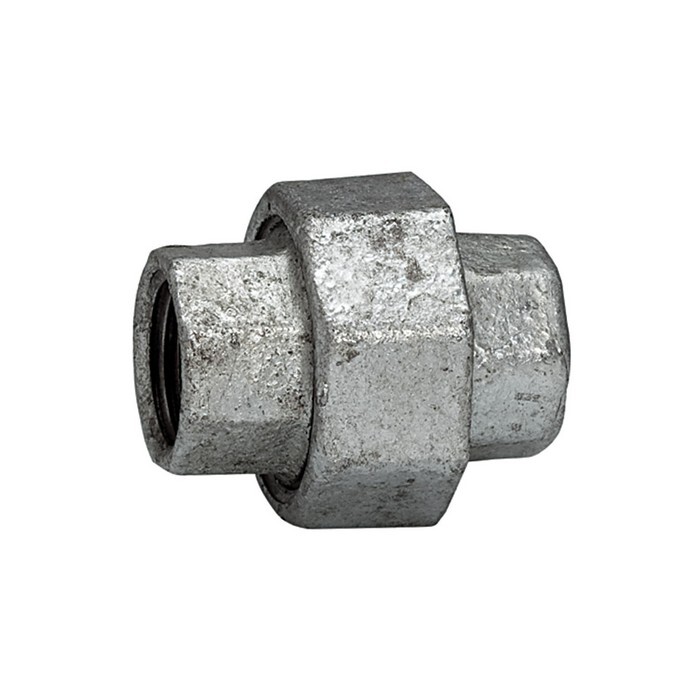

Screw connection no. 330 galvanised
I/I Rp 2" flat sealing ISO/EN U1Item-no.: 1108691EAN: 4047322384025
PU (Bag): 5 STKPU (Carton): 10 STKPU (Packaging): 10 STKQuantity:
1 STKPackable
Description
Fitting 330, flat sealing, IT/IT, Rp/Rp 2, NBR seal, Operating temp. -20°C to 200°C, black malleable cast iron, Hot-dip galva. Maximum temperature and maximum operating pressure should not occur at the same time! Acc. to DIN EN 10242 (formerly DIN 2950) The classic - and the most popular - screw fitting series for pipe construction. These fittings are characterized by their high mechanical strength and surface quality to DIN 2444. They are completely coated with a layer of pure zinc and are therefore suitable for drinking water; they are also protected against rust. These malleable iron fittings are used in machine construction, exterior lines, cold water lines and heating lines.
Attributes
Material
Black malleable cast iron B350-10 Design Symbol A
Screw thread
Rp/Rp 2
Surface
Hot-dip galvanised
Temperature range max.
200 °C
Temperature range min.
-20 °C
Thread standard
according to ISO 7-1
