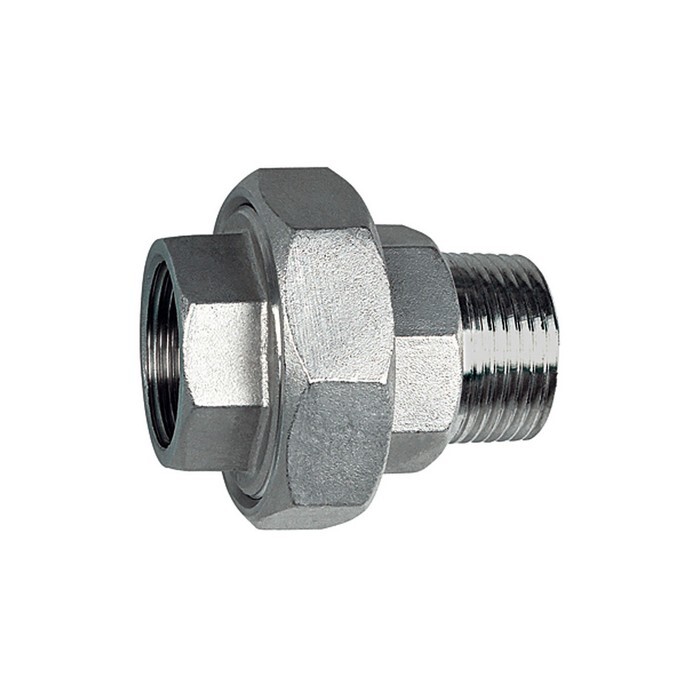

Flat-sealing screw connection
IG/AG 3/4", max 10 bar stainless steel AISI 316LItem-no.: 1110655Supplier number: 274.05-ESEAN: 4047322400947
PU (Packaging): 5 STKQuantity:
1 STKPackable
Item available in 7 variants:
Description
Rem. Double threaded nipple, Interior / exterior thread, flat sealing, G 3/4, Working pressure max. 10 bar, Stainless steel 1. 4408
Attributes
L1
59,7 mm
Riegler article number
111959
SW 1
47 mm
SW 2
32 mm
Screw thread
G 3/4
Sealing material
Flat gasket PTFE
Thread standard
DIN EN ISO 228-1
Working pressure max.
10 bar
