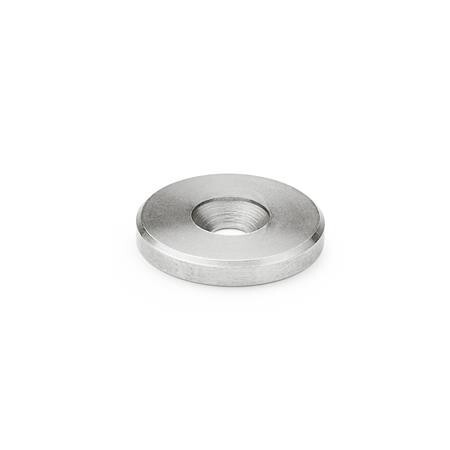

Template disc
GN 184.5-40 stainless steelNI - Stainless steel
Item-no.: 1076772Supplier number: 184.5-40EAN: 4045525072541
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 11 variants:
Price and stock visible after login
Description
Countersunk washers GN 184.5 are retained to the face of the shaft end with a countersunk head screw DIN ISO 2009 or DIN 7991 forming a clean-look end cap. A typical application is the retention of handwheels with hub keyed to the shaft.
Attributes
Material
NI - Stainless steel
Outer diameter d1
40
RoHS
Ja
Weight
0.045 kg
d2
6.4
d3
12.3
s
5
