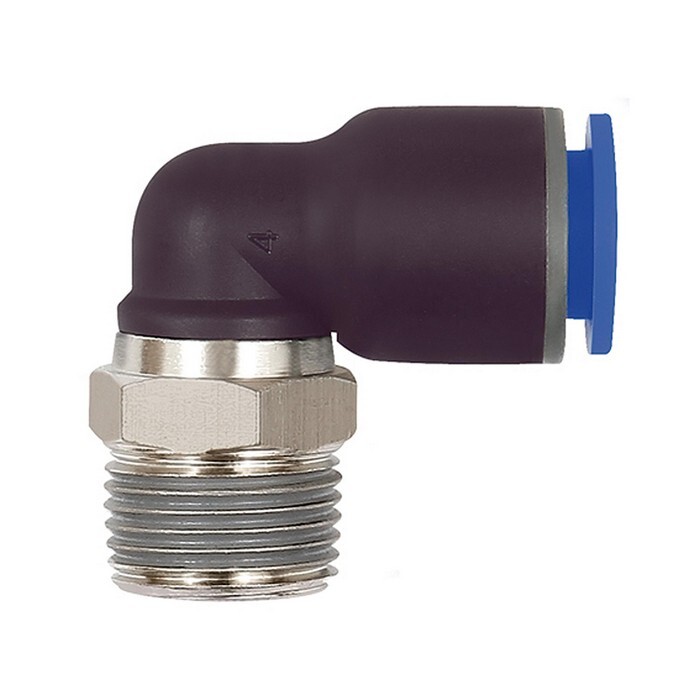

Elbow screw-in fitting
AG 1/2 "R, SD6, swivelling, PTFE Blue series, KU- nickel-plated brassItem-no.: 1114423Supplier number: 126.012-6EAN: 4047322023344
PU (NWVE): 10 STKQuantity:
1 STKPackable
Item available in 19 variants:
Description
Push-in L-fitting »Blue Series«, rotating, R 1/2 o., for hose exterior Ø 6 mm, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass. All parts are suitable for use with hoses, tubes or pipes made of plastic.
Attributes
Application range
Air, vacuum
For outer hose Ø
6 mm
L1
20,1 mm
L2
25,5 mm
Loosening ring
Plastic
Material
Plastic or nickel-plated brass
Medium
Compressed air, neutral and non-hazardous gases and liquids
Product range
Blue series
Recommended hose
PU or PA (nylon)
Riegler article number
109293
SW
21 mm
Screw thread
R 1/2
Temperature range max.
80 °C
Temperature range min.
-20 °C
Working pressure max.
15 bar
