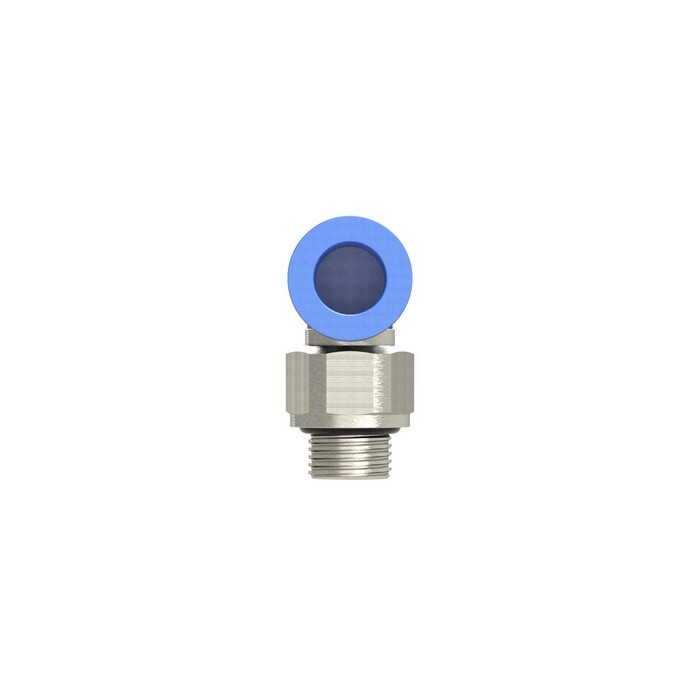

Elbow screw-in fitting
AG 1/2", SD12, swivelling, O-ring Blue series, KU- nickel-plated brassItem-no.: 1114399Supplier number: 125.012-12EAN: 4047322023153
Quantity:
1 STKPackable
Item available in 16 variants:
Description
Push-in L-fitting »Blue Series«, rotating, G 1/2 o., for hose exterior Ø 12 mm, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass. All parts are suitable for use with hoses, tubes or pipes made of plastic.
Attributes
Application range
Air, vacuum
For outer hose Ø
12 mm
L1
28,5 mm
L2
27,2 mm
Loosening ring
Plastic
Material
Plastic or nickel-plated brass
Medium
Compressed air, neutral and non-hazardous gases and liquids
Product range
Blue series
Recommended hose
PU or PA (nylon)
Riegler article number
109278
SW
17 mm
Screw thread
G 1/2
Temperature range max.
80 °C
Temperature range min.
-20 °C
Working pressure max.
15 bar
