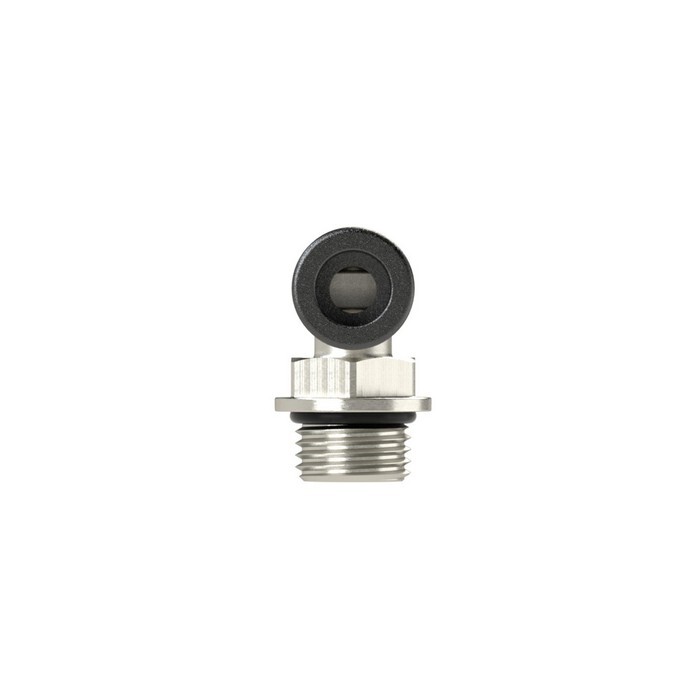

Winkel Einschraubverschraubung
AG 1/8" zyl., SD8, O-Ring click-clock, Messing vernickelt, drehbarItem-no.: 1114691Supplier number: 754.018-8EAN: 4047322209335
Quantity:
1 STKPackable
Item available in 19 variants:
Description
Push-in L-fitting »click-clock«, rotating, G 1/8 o., for hose exterior Ø 8, Working pressure -0. 99 to 16 bar, nickel-plated brass The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass. Advantages of this new, optimised series: Much easier connection and disconnection of the hose, even with repeated mounting Can also be used for non-calibrated hoses Suitable for vacuum operation
Attributes
Clamping ring
Stainless steel
For outer hose Ø
8 mm
L1
25,4 mm
L2
19,1 mm
Loosening ring
Hostaform
Material
Nickel-plated brass
Operating temperature max.
80 °C
Operating temperature min.
-20 °C
Product range
click-clock
Riegler article number
108600
SW
12 mm
Screw thread
G 1/8
Working pressure max.
16 bar
