Winkel Einschraubverschraubung
AG 3/8", SD10, O-Ring FKM metallica, Messing vernickelt, drehbarItem-no.: 1176154Supplier number: 854.038-10EAN: 4047322279383
Quantity:
1 STK
=
1 BundlePackable
Item available in 20 variants:
Description

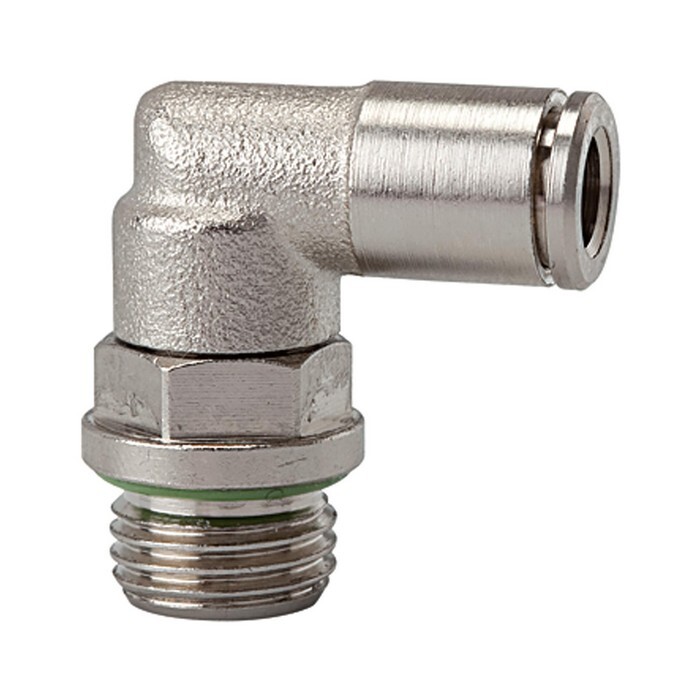

Push-in L-fitting »metallica«, rotating, G 3/8 o., for hose exterior Ø 10, Working pressure -0. 98 to 16 bar, nickel-plated brass All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion; all fittings in this series can thus also be used at high temperatures (medium compressedair).
Attributes
Clamping ring
Stainless steel
For outer hose Ø
10 mm

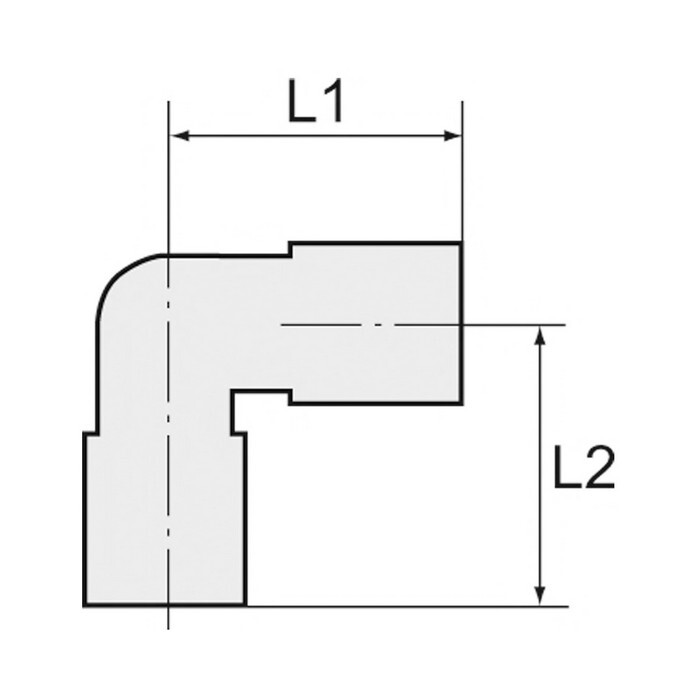

L1
27 mm
L2
28 mm
Loosening ring
Nickel-plated brass
Material
Nickel-plated brass
Operating temperature max.
150 °C
Operating temperature min.
-20 °C
Product range
metallica
Riegler article number
108905
SW
16 mm
Screw thread
G 3/8
Working pressure max.
16 bar
