Description

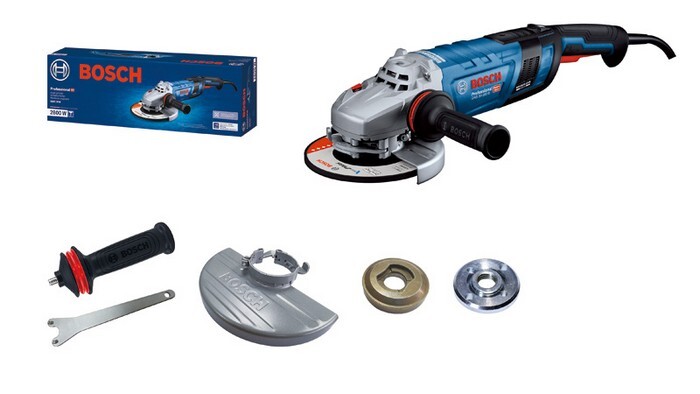

Angle Grinder GWS 30-230 B, The GWS 30-230 B Professional is the angle grinder for faster and more comfortable material removal thanks to its very strong 2,800 W brushless motor. It provides maximum power, high overload capability, and stands for maximum productivity. The brushless motor without commutator and carbon brushes leads to less wear and minimum downtime. The GWS 30-230 B Professional is equipped with KickBack Control and brake, which enables fast disc standstill. This, in addition to Vibration Control and an improved vibration cancelling system, provides enhanced user protection. The GWS 30-230 B Professional is ideal for grinding metal or welding seams and for cutting metal, concrete, bricks, and tiles. The GWS 30-230 B Professional execution is compatible with Bosch’s dust extraction system GDE 230 FC-T Professional. Additional features of the GWS 30-230 B Professional are an LED tool status indicator, Overload Protection, Restart Protection, and Soft Start. Locking nut (1 603 340 040), Two-hole spanner (1 607 950 048), Vibration Control auxiliary handle (2 608 900 001), Quick adjustment protective guard (2 605 510 281)
Attributes
Disc Ø
230 mm
Grinding spindle thread
M14
Idle speed
6500 min-1
Leerlaufdrehzahl, bis zu
6500 min-1
Main handle
Round shape
Measurement uncertainty k (sanding with sanding sheet)
1.5 m/s²
Measurement uncertainty k (surface grinding (roughing ))
1.5 m/s²
Nominal input power
2800 W
Pot brush, Ø
100 mm
Rubber sanding disc, Ø
230 mm
Verpackungsabmessungen (Breite x Länge x Höhe)
195 x 605 x 135 mm
Vibration emission value ah [sanding with sanding sheet]
2.7 m/s²
Vibration emission value ah [surface grinding (roughing)]
5.0 m/s²
Voltage, electrical
230 V
Weight
5.9 kg
Werkzeugabmessungen (Länge)
530 mm
