Angle grinder, adjustable
GWS 14-125 S (C), 1400 watts Bosch 0.601.7D0.100Item-no.: 1572033Supplier number: 06017D0100EAN: 4059952576473
Quantity:
1 STKPackable
Description

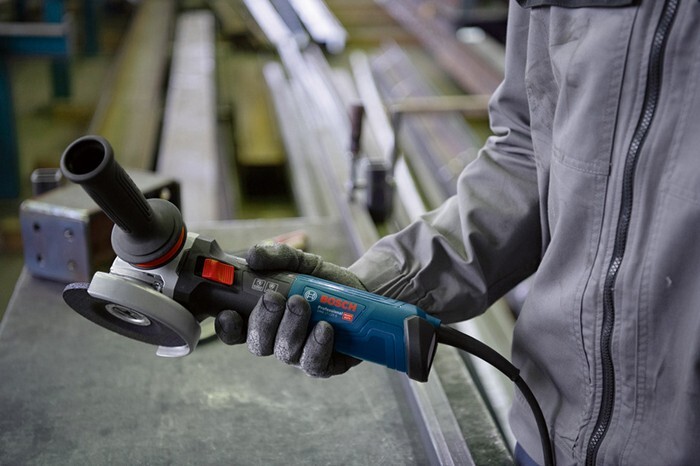

Angle Grinder GWS 14-125 S, Maximum productivity through more power and better robustness, an improved dust protection, and its Speed Selection make the GWS 14-125 S Professional so extremely efficient. Its significantly small grip size provides much better convenience while working. KickBack Control, Restart Protection, and a Vibration Control side handle ensure a higher user protection. The GWS 14-125 S Professional is ideal for grinding metal and welding seams or cutting metal, concrete, bricks, and tiles. The compact angle grinder is compatible with Bosch’s dust extraction systems GDE 125 EA-T Professional and GDE 115 / 125 FC-T Professional. It also features Constant Speed, Soft Start, and Overload Protection. Vibration Control auxiliary handle (2 608 900 000), Protective guard (1 605 510 365), Protective clip-on cutting guard plastic (2 608 000 757), Two-hole spanner (1 607 950 043), Backing flange (1 605 703 099), Locking nut (1 603 340 040), Cardboard box
Attributes
Borehole, Ø
22.2 mm
Disc Ø
125 mm
Grinding spindle thread
M14
Idle speed
2800 - 11500 min-1
Leerlaufdrehzahl, bis zu
11500 min-1
Leerlaufdrehzahl, von
2800 min-1
Main handle
Bar handle
Measurement uncertainty k (sanding with sanding sheet)
1.5 m/s²
Measurement uncertainty k (surface grinding (roughing ))
1.5 m/s²
Nominal input power
1400 W
Verpackungsabmessungen (Breite x Länge x Höhe)
130 x 390 x 160 mm
Vibration emission value ah [sanding with sanding sheet]
3.2 m/s²
Vibration emission value ah [surface grinding (roughing)]
5.7 m/s²
Voltage range
220 - 240 V
Voltage range, from
220 V
Voltage range, up to
240 V
Voltage, electrical
230 V
Weight
2.2 kg
Werkzeugabmessungen (Länge)
327 mm
