Push-in elbow fitting
IG 1/2", SD16 Blue series, KU- nickel-plated brassItem-no.: 1245721Supplier number: 168.012-16EAN: 4047322264464
Quantity:
1 STKPackable
Item available in 21 variants:
Description
Push-in L-fitting »Blue Series«, rotating, G 1/2 i., for hose exterior Ø 16 mm, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass. All parts are suitable for use with hoses, tubes or pipes made of plastic.
Attributes
Application range
Air, vacuum
For outer hose Ø
16 mm

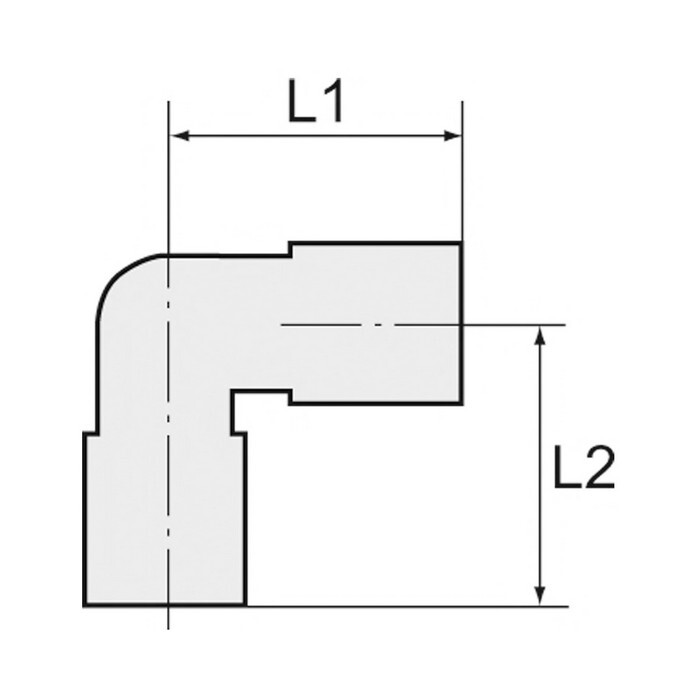

L1
32,5 mm
L2
43 mm
Loosening ring
Plastic
Material
Plastic or nickel-plated brass
Medium
Compressed air, neutral and non-hazardous gases and liquids
Product range
Blue series
Recommended hose
PU or PA (nylon)
Riegler article number
109360
SW
24 mm
Screw thread
G 1/2
Temperature range max.
80 °C
Temperature range min.
-20 °C
Working pressure max.
15 bar
