Item available in 6 variants:
Elbow 90° AG 1/2 "R x AG 1/2 "R, 60 bar brass
xElbow 90° AG 1/4 "R x AG 1/4 "R, 60 bar brass
Elbow 90° AG 1/2 "R x AG 1/2 "R, 60 bar brass
Elbow 90° AG 1/8 "R x AG 1/8 "R, 60 bar brass
Elbow 90° AG 3/8 "R x AG 3/8 "R, 60 bar brass
Elbow 90° AG 1 "R x AG 1 "R, max 60 bar brass
Elbow 90° AG 3/4 "R x AG 3/4 "R brass
Description
Angled piece, exterior / exterior, R 1/2, AF 21, Operating pressure max. 60 bar, Operating temperature max. 150 °C, Bright brass
Attributes

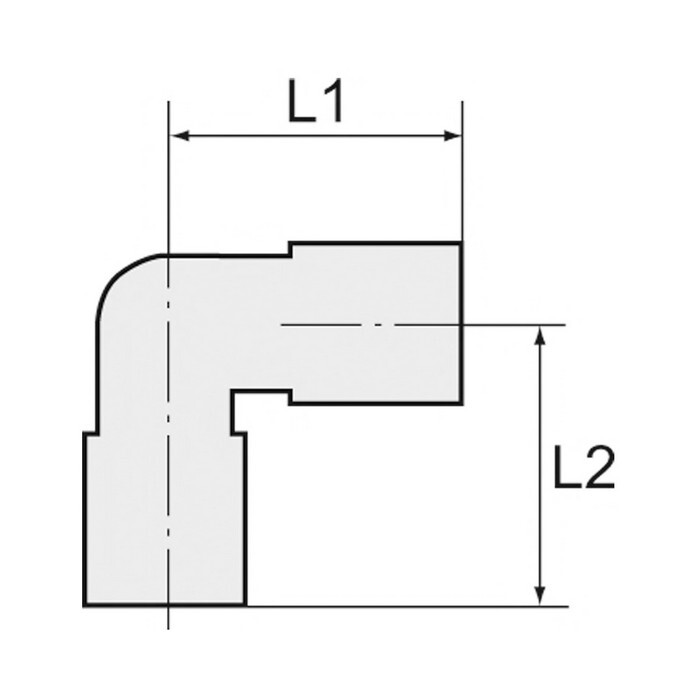

L1
31 mm
L2
31 mm
Max. operating pressure
60 bar
Operating temperature max.
150 °C
Riegler article number
112699
SW
21 mm
Screw thread
R 1/2
