Y-hose connection piece
LW8 Brass, PN 16Item-no.: 1278719Supplier number: 172 CEAN: 4047322487504
PU (NWVE): 10 STKQuantity:
1 STKPackable
Item available in 5 variants:
Description
Y hose connection supports, for hose I. D. 8 mm, brass CW617N, Max. working pressure 10 bar, Max. medium/ambient temp. 90 °C
Attributes
Ambient temperature max.
90 °C
For hose
LW 8 mm

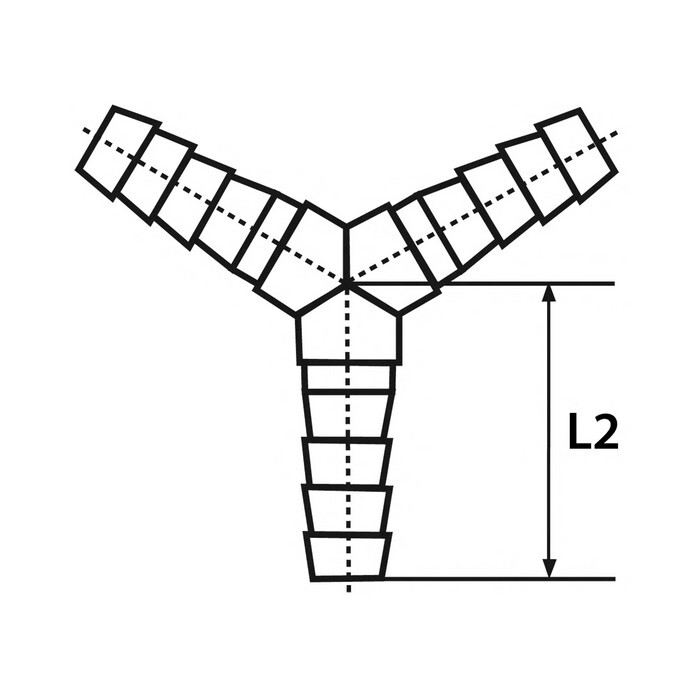

L2
27 mm
Material
Brass CW617N
Medium temperature max.
90 °C
Riegler article number
134509
Working pressure max.
10 bar
