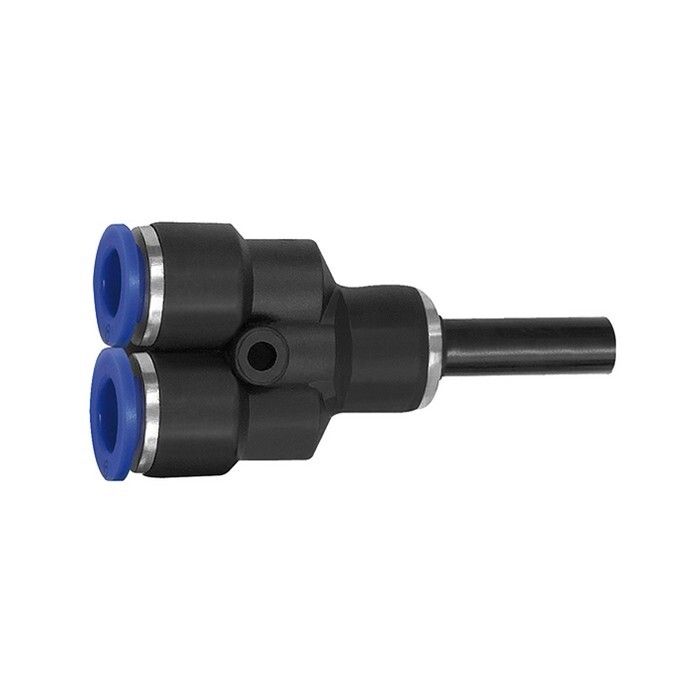

Y-plug-in nipple
SD8 Plastic, blue seriesItem-no.: 1114541Supplier number: 142.008EAN: 4047322028660
Quantity:
1 STKPackable
Item available in 9 variants:
Description
Push-in Y-connector, Plug nipple »Blue Series«, for hose and plug exterior Ø 8 mm, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass. All parts are suitable for use with hoses, tubes or pipes made of plastic.
Attributes
Application range
Air, vacuum
For outer hose Ø
8 mm
L1
55,5 mm
Loosening ring
Plastic
Material
Plastic or nickel-plated brass
Medium
Compressed air, neutral and non-hazardous gases and liquids
Plug nipple
8 mm
Product range
Blue series
Recommended hose
PU or PA (nylon)
Riegler article number
125721
Temperature range max.
80 °C
Temperature range min.
-20 °C
Working pressure max.
15 bar
