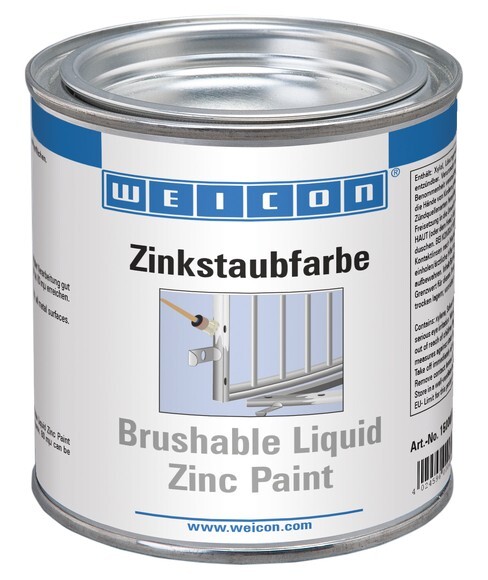

Zinc dust paint
375 ml tin WeiconItem-no.: 1173065Supplier number: 10000322EAN: 4024596000684
PU (Packaging): 6 STKQuantity:
1 STKPackable
Item available in 3 variants:
Description
WEICON Brushable Liquid Zinc Paint is a metal pigment coating, which can be used to actively and permanently protect metallic surfaces against corrosion. WEICON Brushable Liquid Zinc Paint uses high concentration and pure spherical (round) metal pigments. The high amount of zinc in the coating ensures efficient cathodic corrosion protection. For repairs and coatings of frames, gates, doors, balustrades, poles, posts, machine parts etc. Thus, it meets the requirements stated in the DIN EN ISO 1461 standard. If the surface is damaged, the zinc molecules react with air humidity to form zinc oxide molecules which protect the base material from corrosion.
Attributes
Binding agent
Epoxy resin ester
Boiling point
137.0 °C
Colour shade
zinc grey / matt
Construction material class|DIN 4102
B2
Consumption
~120 ml/m²
Density|(+20°C) DIN 51757
2 g/cm³
Dust dry according to
30 Min.
End hardness
48 Hours
Flash point
30 °C
Grating section|DIN 53151/ISO 2409
Characteristic value GT 0 to GT 1
Mandrel bending test|DIN EN ISO 1519
No hairline cracking
Max. layer thickness | per work step
200 µm
Metal content in the dry film
~ 60,5 %
Overcoatable
12 Hours
Pigment
Zinc pigments (D50 4 μm)
Pigment purity
approx. 98.5%
Processing temperature
+18°C to +30°C °C
Recommended primer
not required
Sales bundle
Tin can
Spray consistency
10 - 20% universal thinner
Temperature resistance
approx. +400°C
VOC (EG)
500.0 g/l VOC
Viscosity|DIN EN ISO 2431
approx. 70s 4 mm / spreadable
