Media-separated 3/2-way solenoid valve, NC, brass, G 1/4, PN 0-5, direct. opera., 24V DC, med.temp. 0 to 80, amb.temp. 0 to 55. Media-separated solenoid valves are an important component in the control of fluids in systems. With these direct or pilot operated values only the fluid housing and the separating diaphragm come into contact with the medium. Thus, these valves can withstand many different media (see resistance chart). In addition, the brass housing meets all the conventional potable water requirements. The direct controlled valve in the 3/2-way design can be used either as a mixing valve or for any desired flow direction.
The pilot operated valve is normally closed in the basic position. By simply turning the 3/2-way pilot valve, the basic position can be changed to normally open.
The pilot operated valve is normally closed in the basic position. By simply turning the 3/2-way pilot valve, the basic position can be changed to normally open.
Specificaties

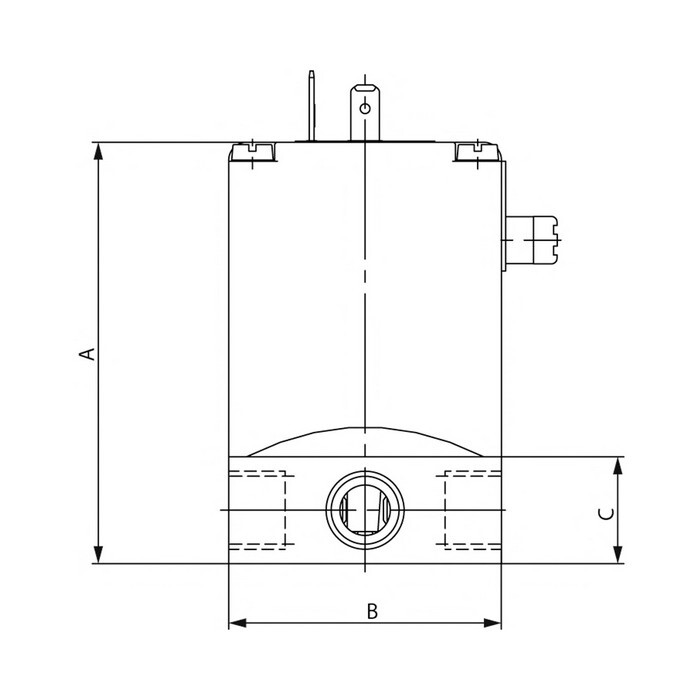

A
71,0 mm
Afdichtingsmateriaal
NBR
B
46,0 mm
Betriebsdruck max.
5 bar
Betriebsdruck min.
0 bar
C
18,0 mm
DN
4
Elektrischer Anschluss
Steckerfahnen nach DIN EN 175301-803
Funktion
stromlos geschlossen (NC)
Gehäuse
Messing
Gewinde
G 1/4
Innenteile
Messing
Mediumstemperatur max.
80 °C
Mediumstemperatur min.
0 °C
Schutzart
IP 65 (bei Verwendung der Gerätesteckdose)
Spanning
24 DC V
Umgebungstemperatur max.
55 °C
Umgebungstemperatur min.
0 °C
Ventilsitz
Messing
