3/2-wegklep

G 3/8, NC monostabiel, elektropneumatisch

Art.-Nr.: 1732462Leveranciersnummer: 7040020200EAN: 4047322771689

Aantal:  1 stukPakketgeschikt

Artikel in 462 varianten beschikbaar:

Beschrijving

3/2-way valve, electropneumatic, monostable, G 3/8, NC, p = 2.5 … 10 bar, T = -10 … 60 °C, aluminium, without connector/coil. Traditional way valves of series 70 in electropneumatic version. These valves have a wide range of applications as bushing valves, direct mounting on the cylinder with special adapters or as series valves with multi-base plates and individual interlinking plates (supply strips).

Specificaties

Actuation

monostable

Afdichtingsmateriaal

NBR

Ambient temperature max.

60 °C

Ambient temperature min.

-10 °C

Connection

G 3/8

DN

13,3

Durchflusswertmessung 1

Durchfluss bei 6 bar und ∆p 0,5 bar

Durchflusswertmessung 2

Durchfluss bei 6 bar und Δp 1 bar

Flow rate 1

1560 Nl/min

Flow rate 2

2150 Nl/min

Function

3/2 NC

Lieferumfang

ohne Stecker und Spule

Manual override

resting

Max. operating pressure

10 bar

Medium

Filtered compressed air with or without oiling. If oiled, then continuously.

Medium temperature max.

60 °C

Medium temperature min.

-10 °C

Operating pressure min.

2,5 bar

Series

Valves Series 70

Spanning

without tension

Steuerluftanschluss

-

Steuerluftzufuhr

intern

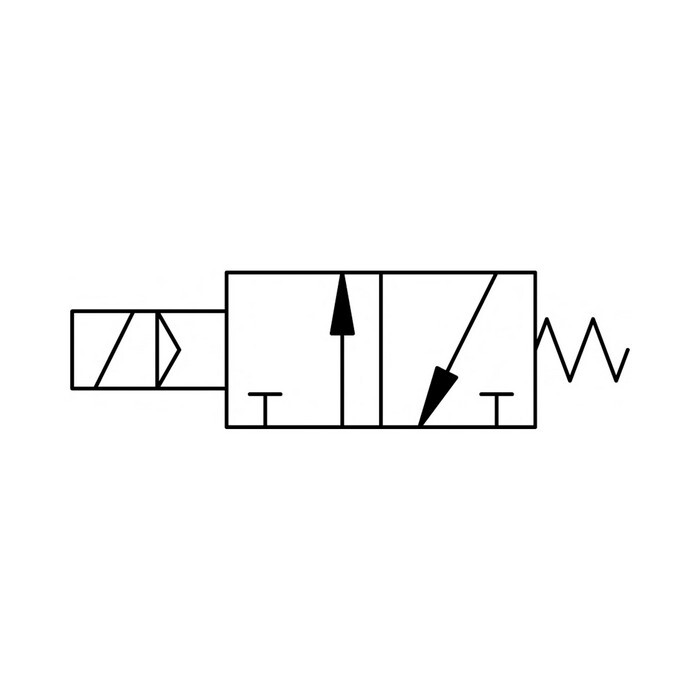

Symbol

33

Version

Electropneumatic

Downloads

Bedienungsanleitungbyhx_p_b-234.pdf
327.06 kB

Technische Dokumentation-dbyhx_145697.pdf
2.68 MB
