Beschrijving

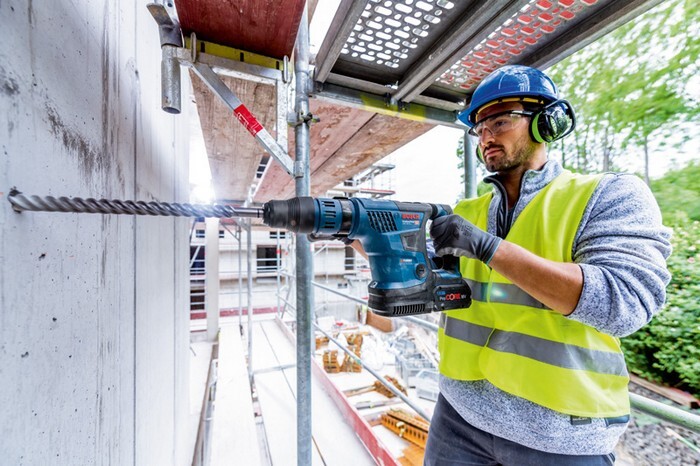

Cordless Rotary Hammer BITURBO with SDS max GBH 18V-36 C, The GBH 18V-36 C Professional combines extreme compactness and high power for tough jobs in concrete. Lightweight at 6.1 kg, its design is significantly more compact and lighter than any other cordless SDS max hammer on the market. The hammer's BITURBO Brushless technology delivers an outstanding performance of 7.0 J max. It is compatible with all Bosch Professional 18 V batteries and chargers (Professional 18V System). For maximum power, use ProCORE18V = 8.0 Ah. Also compatible with AMPShare, the multi-brand battery alliance. It has a user interface with Bluetooth connectivity for real-time tool status and different tool modes, as well as new electronic features like soft start when drilling and chiselling and a lock-on button for chiselling, making it the smartest hammer available. 2 x battery ProCORE18V 8.0Ah (1 600 A01 6GK), Quick charger GAL 1880 CV (1 600 A00 B8G), 1 x Bluetooth Low Energy module GCY 42 Professional (1 600 A01 3WF), Auxiliary handle (2 608 000 702), Machine cloth (spare part number 1 619 200 413), Grease tube (spare part number 1 615 430 010), Carrying case (spare part number 1 605 438 1G2)
Specificaties
Aantal slagen bij nominaal toerental
0 - 2900 bpm
Accucapaciteit
8.0 Ah
Accuspanning
18.0 V
Diameterbereik hamerboren in beton
14 - 35 mm
Gereedschapshouder
SDS max
Gewicht exkl. Akku
5.1 kg
Gewicht inclusief accu
6.1 kg
Meetonzekerheid k (beitelen in beton)
1.5 m/s²
Meetonzekerheid k (hamerboren in beton)
1.5 m/s²
Nenndrehzahl, bis zu
500 min-1
Nenndrehzahl, von
0 min-1
Nominale toerental
0 - 500 min-1
Optimaal toepassingsgebied Beton met hamerboren
14 - 35 mm
Slagenergie (volgens EPTA 05/2016)
7 J
Trillingsemissie ah [beitelen in beton]
10.8 m/s²
Trillingsemissie ah [hamerboren in beton]
11.4 m/s²
Verpackungsabmessungen (Breite x Länge x Höhe)
408 x 618 x 150 mm
Werkzeugabmessungen (Länge)
460 mm
