Beschrijving

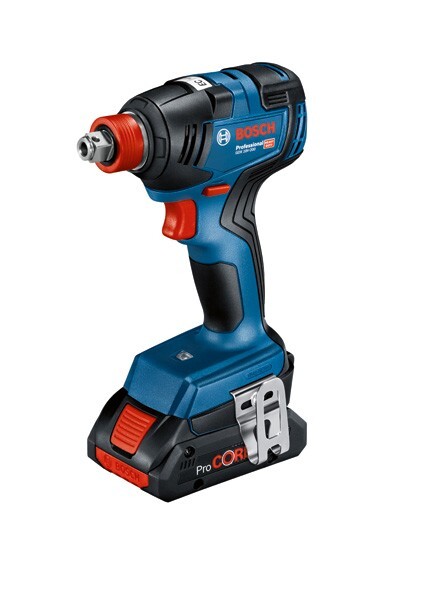

Cordless Impact Driver/Wrench GDX 18V-200, The GDX 18V-200 Professional combines brushless power, a compact design and a 2-in-1 tool holder for highest flexibility. The unique 2-in-1 tool holder with ¼” internal hex and ½” square drive makes it versatile and ideal for the widest range of applications. It comes with a brushless motor, which features high performance of 200 Nm tightening torque, 350 Nm breakaway torque, excellent battery runtime and a long tool lifespan. To have a better control over speed and torque the GDX 18V-200 is equipped with a variable speed trigger. The GDX 18V-200 Professional is the ideal choice for tightening and removing screws (M 6 – M 16), when working in metal sheet, metal or wood. It is also compatible with all Bosch Professional 18 V batteries and chargers (Professional 18V System). Also compatible with AMPShare, the multi-brand battery alliance. It also features Electronic Cell Protection (ECP), a LED light and a belt clip. 1/2 L-BOXX inlay for tool and charger (1 600 A01 CU5), 1/2 L-BOXX inlay for accessories (1 600 A00 2WC), L-BOXX 136 (1 600 A01 2G0)
Specificaties
Aantal slagen
0-4200 bpm
Aantal slagen tot
4200 bpm
Aantal slagen, van
0 bpm
Accuspanning
18.0 V
Draaimoment, max.
200 Nm
Gereedschapshouder
1/4'' zeskant uni
Gewicht exkl. Akku
1.2 kg
Leerlaufdrehzahl, bis zu
3400 U/min
Leerlaufdrehzahl, von
0 U/min
Maximaal afbreekkoppel
350 Nm
Meetonzekerheid k (Vastdraaien van schroeven en moeren van de maximaal toegestane grootte)
1.5 m/s²
Onbelast toerental
0-3400 U/min
Onbelast toerental (1e versnelling)
0-3400 min-1
Onbelast toerental, 1e versnelling, tot
3400 min-1
Onbelast toerental, 1e versnelling, van
0 min-1
Schroef Ø
M 6 - M 16
Trillingsemissie ah [Aanhalen van bouten en moeren van maximaal toelaatbare grootte]
10.0 m/s²
Verpackungsabmessungen (Breite x Länge x Höhe)
360 x 446 x 155 mm
Werkzeugabmessungen (Länge)
147 mm
