Beschrijving

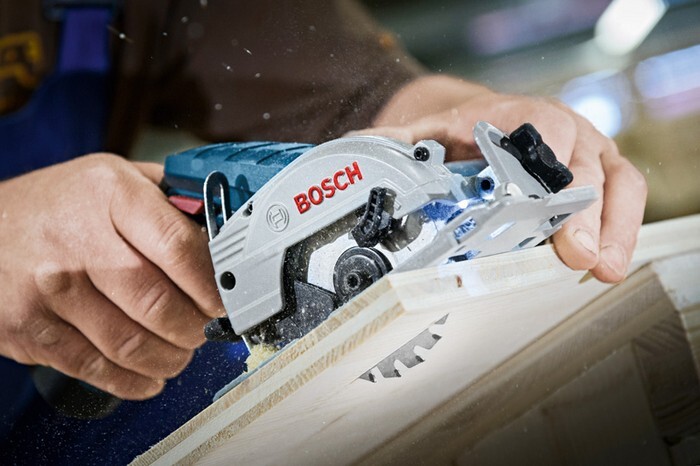

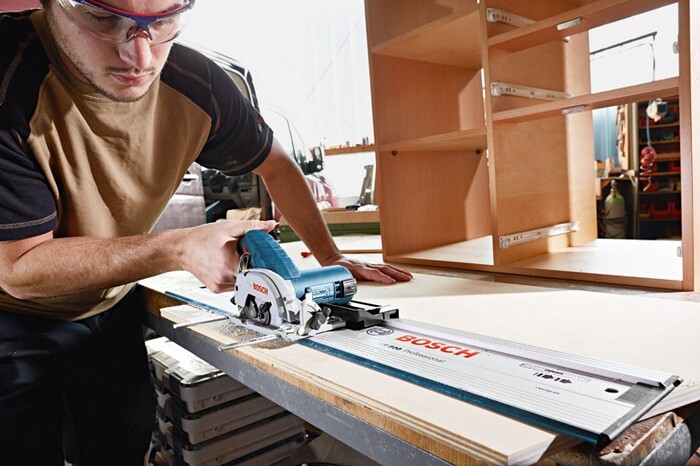

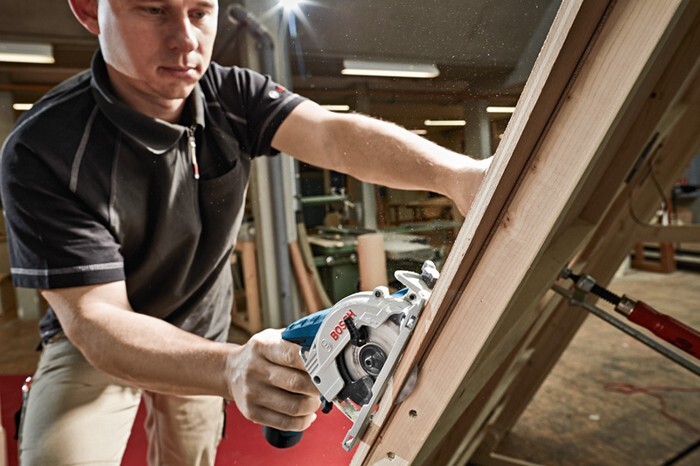

Cordless Circular Saw GKS 12V-26, The GKS 12V-26 Professional is a compact, cordless circular saw for cuts up to 26.5 mm. Its design is perfect for easy handling and convenient sawing at any place. The cordless circular saw can be easily controlled thanks to its small handle circumference and its low weight of only 1.4 kg. The GKS 12V-26 Professional is (with an adapter) compatible with the Bosch guide rail system for perfectly straight cuts. The cordless circular saw is ideal for sawing thin wood materials like laminate and derived lumber products like OSB, plywood, or MDF. It is compatible with all Bosch Professional 12 V batteries and chargers (Professional 12V System). The GKS 12V-26 Professional features an LED light, a stamped-steel footplate and a spindle lock as well as a dust port connector. Dust extraction adapter, Hex key, 1/2 L-BOXX inlay for tool (1 600 A00 2WU), L-BOXX 136 (1 600 A01 2G0), 1/2 L-BOXX inlay for charger (1 600 A00 2WY), 1 x circular saw blade, Standard for Wood, 85 x 15 x 1.1 mm, 20 (2 608 643 071), Parallel guide/guide rail adapter (1 619 P11 536)
Specificaties
Accuspanning
12.0 V
Diameter zaagbladboring
15 mm
Geleiderail compatibel
ja
Gewicht inclusief accu
1.4 kg
Leerlaufdrehzahl, von
1400 min-1
Max. snijcapaciteit in hout (45°)
17 mm
Max. snijcapaciteit in hout (90°)
26.5 mm
Meetonzekerheid k
2.5 m/s²
Onbelast toerental
1400 min-1
Trillingsemissie waarde ah
1.5 m/s²
Verpackungsabmessungen (Breite x Länge x Höhe)
355 x 440 x 165 mm
Zaagbladdiameter
85 mm
