Beschrijving

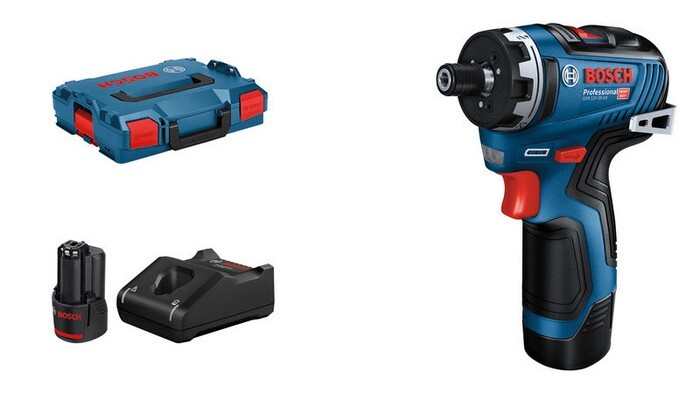

Cordless Screwdriver GSR 12V-35 HX, The perfect balance between compactness, productivity and performance in the 12V class: the brushless GSR 12V-35 HX Professional cordless screwdriver. This highly compact cordless screwdriver easily reaches into tight and narrow spaces. With a rotation speed of 1,750 rpm, it is the fastest 2-gear 12V tool of its kind, enabling smooth and efficient working with fast results. Exchanging bits is easy thanks to the convenient lockable 1/4" bit interface. The GSR 12V-35 HX Professional is suitable for screwdriving into a wide range of materials. It is compatible with all Bosch Professional 12V and 10.8V batteries and chargers. 2 x battery GBA 12V 3.0Ah (1 600 A00 X79), Quick charger GAL 12V-40 Professional (1 600 A01 9R3), L-BOXX 102 (1 600 A01 2FZ), 1/2 L-BOXX inlay for tool and charger (1 600 A00 2V2), 1/2 L-BOXX inlay for accessories (1 600 A00 2WY), 1 x belt clip, 1 x bit holder
Specificaties
Accu type
Lithium-ion
Accucapaciteit
3.0 Ah
Accuspanning
12.0 V
Bohr-Ø Holz, max.
32 mm
Boor-Ø staal, max.
10 mm
Boorhouder, ontwerp
1/4" met binnenzeskant (ISK)
Draaimoment (zacht/hard/max.)
20/35/- Nm
Draaimomentniveaus
20+1
Draaimomentniveaus (extra)
1
Draaimomentniveaus (standaard)
20
Drehmoment (hart)
35 Nm
Drehmoment (weich)
20 Nm
Gewicht exkl. Akku
0.57 kg
Klembereik boorhouder, min./max.
0.8 / 10 mm
Klembereik, max.
10.0 mm
Klembereik, min.
0.8 mm
Meetonzekerheid k (boren in metaal)
0.0 m/s²
Meetonzekerheid k (schroeven)
0.0 m/s²
Onbelast toerental (1e versnelling / 2e versnelling)
0 - 460 / 0 - 1750 min-1
Onbelast toerental, 1e versnelling, tot
460 min-1
Onbelast toerental, 1e versnelling, uit
0 min-1
Onbelast toerental, 2e versnelling, tot
1750 min-1
Onbelast toerental, 2e versnelling, van
0 min-1
Schroef Ø, max.
8 mm
Trillingsemissie ah [boren in metaal]
1.5 m/s²
Trillingsemissie ah [schroeven]
1.5 m/s²
Verpackungsabmessungen (Breite x Länge x Höhe)
360 x 443 x 122 mm
