Beschrijving

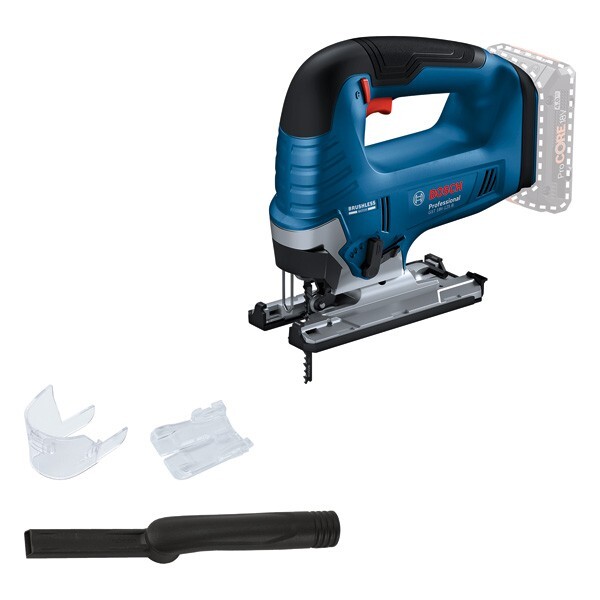

Cordless Jigsaw GST 18V-125 B, The robust design and the powerful brushless motor of the GST 18V-125 B Professional (with bow handle) ensure increased tool longevity and excellent tool runtime. The cordless jigsaw is a reliable problem solver for all applications at an optimal price-performance ratio in its segment. The GST 18V-125 B Professional keeps it simple with a focus on core important functions such as SDS blade holder, LED, 4-stage pendulum, dust blower and Speed Selection. This cordless jigsaw is ideal for curved and cross cuts in solid wood, chipboard, and wood composites as well as for thicker or harder materials. It can be used with guide rails via adapter. The tool is compatible with external dust extraction and with all Bosch Professional 18V batteries and chargers (Professional 18V System). Also compatible with AMPShare, the multi-brand battery alliance. The baseplate of the GST 18V-125 B Professional can be adjusted up to 45° to make bevel cuts. The tool comes with a removable plastic overshoe to protect sensitive workpieces. 1 x jigsaw blade T 144 D, Speed for Wood (available separately as set of 3: 2 608 630 560), Splinter guard (spare part number 2 601 016 065), Dust extraction set (spare part number 1 619 P17 472)
Specificaties
Aantal slagen bij onbelast toerental
0 - 3500 min-1
Aantal slagen bij onbelast toerental vanaf
0 min-1
Aantal slagen bij onbelast toerental, tot
3500 min-1
Accuspanning
18.0 V
Gewicht exkl. Akku
2 kg
Meetonzekerheid k (zagen van hout)
1.5 m/s²
Meetonzekerheid k (zagen van metaalplaat)
1.5 m/s²
Neigingshoek
-45 - 45 °
Slaghoogte
26 mm
Trillingsemissie ah [Zagen van plaatmetaal]
3.5 m/s²
Trillingsemissie ah [zagen van hout]
4.1 m/s²
Verpackungsabmessungen (Breite x Länge x Höhe)
230 x 290 x 95 mm
Werkzeugaufnahme
T-Schaft
Zaagdiepte in aluminium
20 mm
Zaagdiepte in hout
125 mm
Zaagdiepte in ongelegeerd staal
10 mm
