Beschrijving

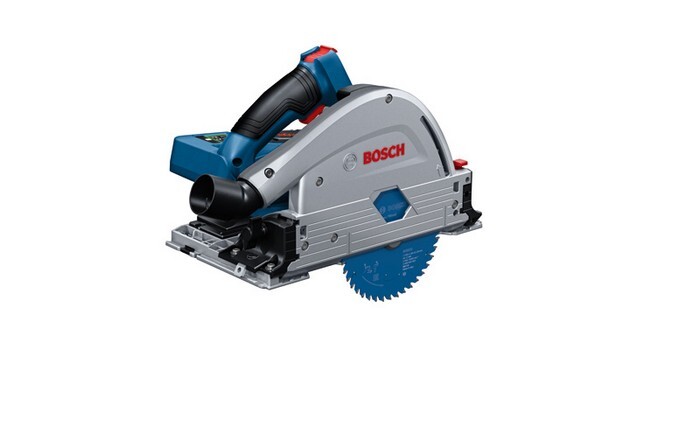

Cordless Plunge Saw BITURBO GKT 18V-52 GC, The GKT 18V-52 GC Professional cordless plunge saw delivers corded performance and superior compactness in Bosch´s 18 V category. Its innovative BITURBO Brushless technology and ProCORE18V provide maximum cordless cutting performance fully equal to corded 1,620 W plunge saws. The saw offers superior mobility due to its uniquely compact design allowing operation with only one battery. Its very compact tool design enables the closest distance between the saw blade and the wall at only 10 mm. This plunge saw is intended for plunge cutting in wood, composites, board and panel materials, aluminium, and acrylic glass. It can be used with dust bags and is compatible with the Bosch Click & Clean System as well as the Bosch, Festool, Mafell, and Makita guide rail systems and with all Bosch Professional 18 V batteries and chargers (Professional 18V System). For maximum power use ProCORE18V ≥ 5.5 Ah. Also compatible with AMPShare, the multi-brand battery alliance. The GKT 18V-52 GC Professional also features constant speed, eco mode for up to 20% higher runtime, a HMI, individual speed settings, customisable speed settings via an app, overload protection, restart protection, soft start, and spindle lock. 1 x circular saw blade, Expert for Wood for cordless saws, 140 x 1.8/1.3 x 20 mm, 42 (2 608 644 500), L-BOXX 238 (1 600 A01 2G2), Dust bag (2 608 000 696), 1 x Bluetooth Low Energy module GCY 42 Professional (1 600 A01 3WF), Hex key
Specificaties
Accuspanning
18.0 V
Diameter zaagbladboring
20 mm
Führungsplatte (Breite)
169 mm
Führungsplatte (Länge)
305 mm
Geleideplaat
305 x 169 mm
Gewicht exkl. Akku
4.1 kg
Leerlaufdrehzahl, bis zu
5500 min-1
Leerlaufdrehzahl, von
2800 min-1
Neigingshoek
-1 - 47 °
Onbelast toerental
2800 - 5500 min-1
Verpackungsabmessungen (Breite x Länge x Höhe)
360 x 444 x 254 mm
Werkzeugabmessungen (Länge)
374 mm
Zaagbladdiameter
140 mm
Zaagdiepte met geleiderail (45°)
32 mm
Zaagdiepte met geleiderail (90°)
46 mm
Zaagdiepte zonder geleiderail (45°)
32 mm
Zaagdiepte zonder geleiderail (90°)
52 mm
