Beschrijving

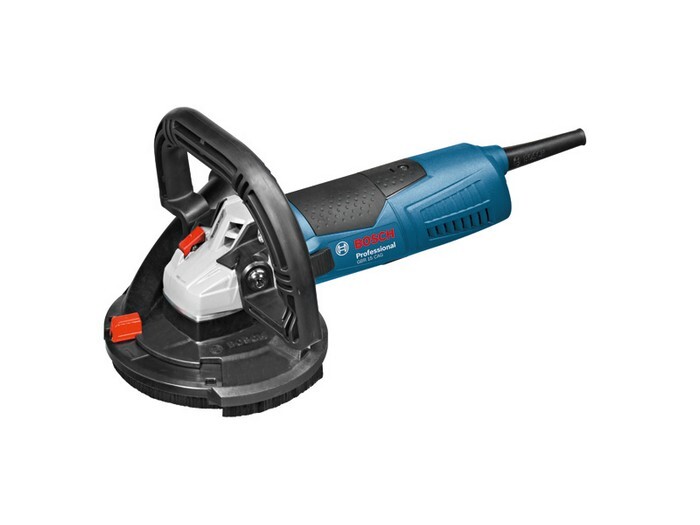

Concrete Grinder GBR 15 CAG, The GBR 15 CAG Professional is a corded, powerful concrete grinder with flush-grinding capabilities. Its high-powered 1,500 W motor enables a fast work progress even under load. Both its ergonomically shaped grip and a low tool weight ensure comfortable handling. This concrete grinder also includes a movable protective guard section for dust protection while grinding close to edges. This tool is intended for grinding in concrete. It is compatible with the Bosch Click & Clean dust extraction system. The GBR 15 CAG Professional operates at 9,000 rpm and includes features such as constant speed, restart protection, and soft start. 1 x diamond grinding head, 125 mm (2 608 601 762), 3 x replacement brush ring (2 608 620 692), 1/1 L-BOXX inlay for tool GBR 15 CAG, L-BOXX 238 (1 600 A01 2G2), Two-hole spanner, bent at right angles (3 607 950 017)
Specificaties
Gewicht
2.6 kg
Hoofdhandgreep
Beugel (draaibaar)
Leerlaufdrehzahl, bis zu
9300 min-1
Meetonzekerheid k (oppervlakschuren (opruwen)
1.5 m/s²
Nominaal ingangsvermogen
1500 W
Onbelast toerental
9300 min-1
Potplaat, Ø
125 mm
Schijf Ø
125 mm
Slijpspindel draad
M14
Spanningsbereik
220 - 240 V
Spanningsbereik, tot
240 V
Spanningsbereik, van
220 V
Trillingsemissie ah [vlakslijpen (opruwen)]
4.5 m/s²
Verpackungsabmessungen (Breite x Länge x Höhe)
360 x 440 x 240 mm
Werkzeugabmessungen (Länge)
370 mm
