Beschrijving

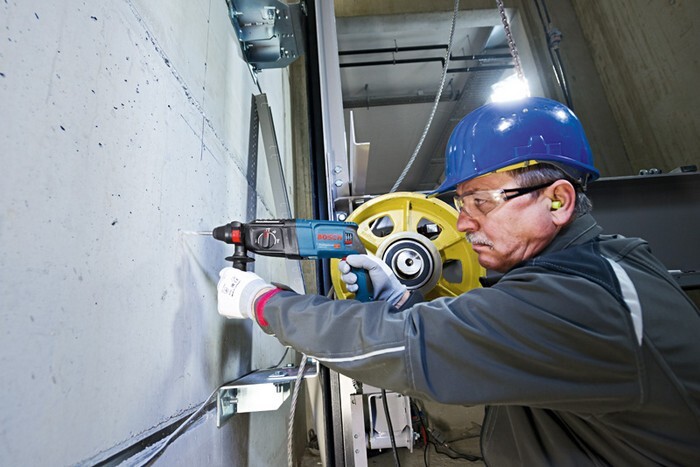

Rotary Hammer with SDS plus GBH 2-26, The GBH 2-26 Professional is the all-round performer in Bosch’s SDS plus corded rotary hammer category, making it ideal for daily use. It delivers 2.7 J of impact energy, providing fast drilling and high chisel removal performance. Reliable and robust, the rotary hammer’s high-quality components also ensure a long lifetime. Its optional chisel mode enables use in a wide range of applications. This tool is intended for drilling and chiselling in concrete, masonry, wood, and metal. It is compatible with various dust attachments. The GBH 2-26 Professional also includes features such as Reverse Mode, Rotation Control Clutch, Variable Speed, and Vario-Lock. Auxiliary handle (2 602 025 141), L-Case (1 605 438 1CR), Depth stop 210 mm (1 613 001 010), Machine cloth
Specificaties
Aantal slagen bij nominaal toerental
0 - 4000 bpm
Boor-Ø beton met hamerboor
4 - 26 mm
Boor-Ø beton met holle kern bit
16 - 68 mm
Gereedschapshouder
SDS plus
Gewicht
2.7 kg
Max. boor-Ø hout
30 mm
Max. boor-Ø metselwerk, kernboren
68 mm
Max. boordiameter metaal
13 mm
Maximale diameter in beton met holle boorkronen
68 mm
Minimale diameter in beton met holle boorkronen
16 mm
Nenndrehzahl, bis zu
900 min-1
Nenndrehzahl, von
0 min-1
Nominaal ingangsvermogen
830 W
Nominale toerental
0 - 900 min-1
Opt. toepassingsgebied beton, hamerboor
8 - 16 mm
Slagenergie (volgens EPTA 05/2016)
2.7 J
Spanning, elektrisch
230 V
Verpackungsabmessungen (Breite x Länge x Höhe)
357 x 448 x 116 mm
Werkzeugabmessungen (Länge)
377 mm
