Artikel in 34 varianten beschikbaar:
Beschrijving

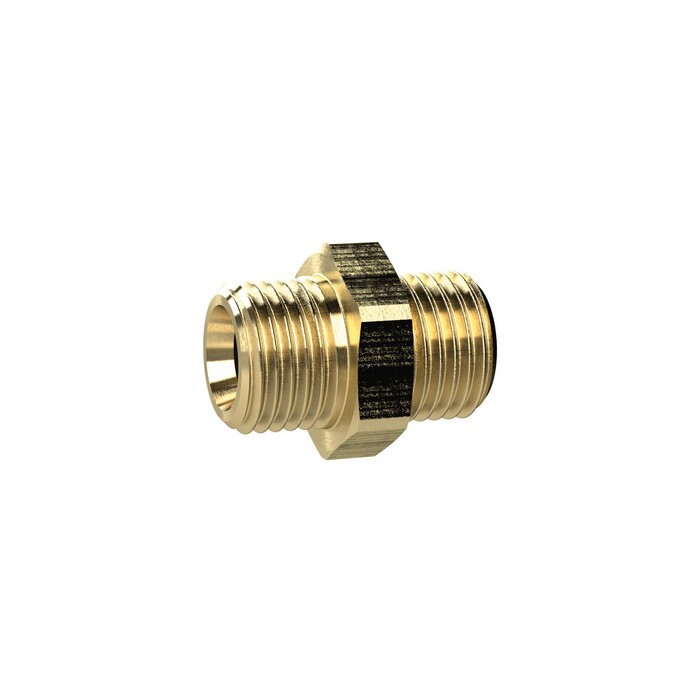

Double threaded nipple, Cyl., G 3/8 o., G 1/2 o., AF 24, Brass, Max. working pressure 25 bar, Max. operating temperature 150 °C
Specificaties
Bedrijfstemperatuur max.
150 °C
Beschrijving
Dubbele nippel G 1/2 AG / G 3/8 AG
L1
26 mm
L2
9 mm
Materiaal
Messing CW614N
Riegler artikelnummer
131791
SW
24 mm
Schroefdraad 1
G 3/8
Schroefdraad 2
G 1/2
Werkdruk max.
25 bar
l3
11 mm
