Ontluchtingsventiel

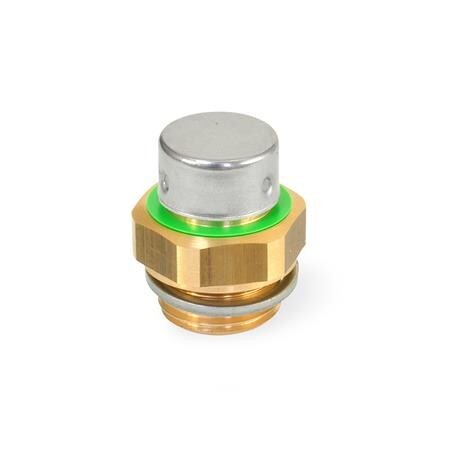

Once the opening pressure given in the table is exceeded, breather valves GN 881 with gasket will vent into a container and so protect against excessive inside container pressure. A green colour ring marks the opening pressure of 200 mbar. In its normal state, the gasket closes the container and so prevents dirt or dust getting inside the container. The above diagram shows the air outlet as a factor of the opening pressure. The valves are checked for leak tightness and opening pressure. Assembly instruction: For mounting on walls of less than 4 mm thickness please use a mounting nuts GN 7430.
