Rechte slijper

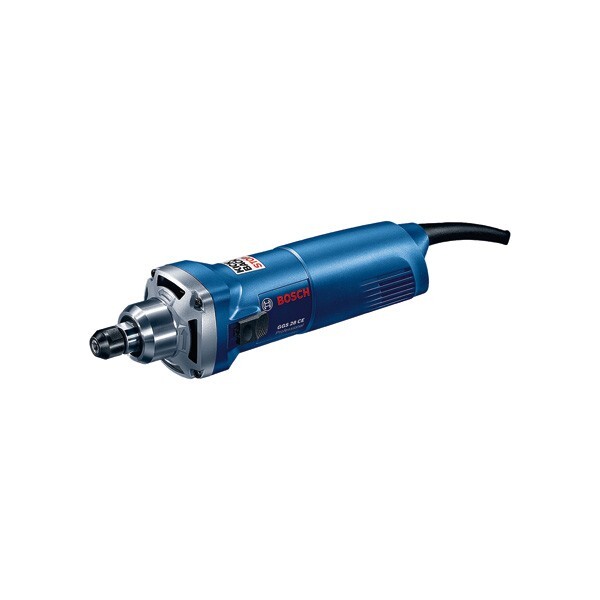

GGS 28 CE Bosch 0.601.220.100Art.-Nr.: 1049388Leveranciersnummer: 0601220100EAN: 3165140584814
Aantal:
1 STKPakketgeschikt
Beschrijving
Straight Grinder GGS 28 CE, The GGS 28 CE Professional corded straight grinder is handy for entry-level performance and universal grinding in the straight grinder category. Its speed selection capabilities, combined with a compact and ergonomic shape, enable versatile work. The machine´s 650 W motor with soft start enables fast work progress. Additionally, user protection is increased due to its KickBack Control feature. This tool is intended for grinding metal. The GGS 28 CE Professional also includes features such as constant speed, direct motor cooling, and overload protection. 2 x open-ended spanners WAF 19 (spare part number 3 607 950 024), Collet with locking nut 6 mm (2 608 570 137)
Specificaties
Gewicht
1.4 kg
Leerlaufdrehzahl, bis zu
30000 min-1
Leerlaufdrehzahl, von
10000 min-1
Max. slijpschijf Ø
50 mm
Max. spantang-Ø
8 mm
Meetonzekerheid k (oppervlakschuren tot Ø 25 )
1.5 m/s²
Meetonzekerheid k (oppervlakschuren tot Ø 50)
1.5 m/s²
Nominaal ingangsvermogen
650 W
Onbelast toerental
10000 - 30000 min-1
Schakel
Vergrendelingsschakelaar
Sleuteloppervlak slijpspindel
19 mm
Sleuteloppervlak spanmoer
19 mm
Spanning, elektrisch
230 V
Spilhals-Ø
43 mm
Spindelhalsdurchmesser
43 mm
Trillingsemissie ah [vlakslijpen tot Ø 25]
3.0 m/s²
Trillingsemissie ah [vlakslijpen tot Ø 50]
8.0 m/s²
Uitgangscapaciteit
380 W
Verpackungsabmessungen (Breite x Länge x Höhe)
160 x 420 x 126 mm
Werkzeugabmessungen (Länge)
460 mm
