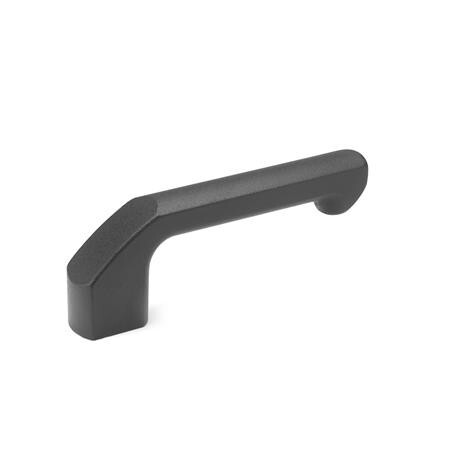

Handgreep open vorm
GN 559-162-B-SW Aluminium zwart RAL 9005AL - Aluminium
Art.-Nr.: 1075734Leveranciersnummer: 559-162-B-SWEAN: 4045525294110
Aantal:
1 stukPakketgeschikt
Artikel in 6 varianten beschikbaar:
Prijs en voorraad zichtbaar na login
Beschrijving
A special characteristic of the cabinet U-handles GN 559 is the thumb rest pad on the front of the leg. At the same time the extended leg offers an open ended version with wide access. The fastening bores of type C are closed by a cover cap following the handle installation. The cover cap is included in the delivery contents. Cabinet U-handles GN 559 are known for their high stability. They are fixed by two M8 screws whereby type A offers two alternative hole centers (l2 or l3).
Specificaties
A1
38
Gewicht
0.233 kg
Lengte l1
162
Materiaal
AL - Aluminium
Oppervlakte
SW - zwart, RAL 9005, mat gestructureerd
RoHS
Ja
Schroefdraad
M 8
Vorm
B - open vorm, montage vanaf de achterkant (blind gat met schroefdraad)
b1
25
b2
28
h2
57
h4
38
h5
28
l4
8
l5
22
t2 min.
16
