Beschrijving

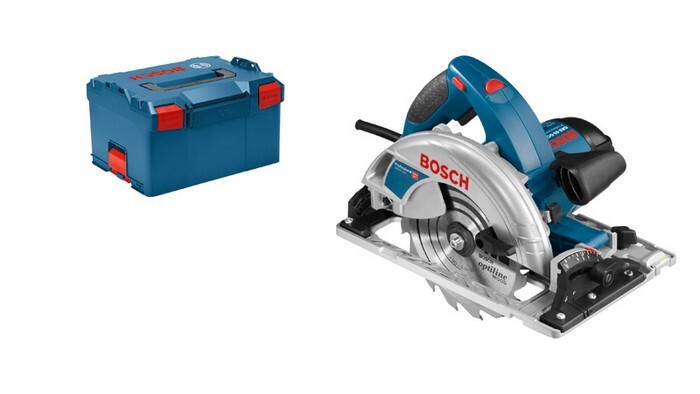

Hand-Held Circular Saw GKS 65 GCE, The GKS 65 GCE Professional circular saw is the ideal choice for guided cuts in a wide range of materials. The powerful and precise circular saw has a 1,800 W motor and achieves a cutting depth of 65 mm. For exact cuts, it has been optimised for use with the Bosch guide rail system. It produces an even sawing progress in a wide variety of materials thanks to the speed selection The circular saw is specially designed for tough tasks and saws various materials such as derived lumber products like OSB, plywood, or MDF. It is compatible with the Bosch guide rail system as well as the guide rail systems of Mafell, Festool, and Makita. The GKS 65 GCE Professional features an air blower, aluminium die-cast footplate, dust port connector, constant speed, soft start and spindle lock. Dust extraction adapter (spare part number 2 610 925 244), Hex key WAF 5 (spare part number 1 907 950 006), L-BOXX 238 (1 600 A01 2G2), 1 x circular saw blade, Optiline Wood, 190 x 30 x 2.0 mm, 16 (2 608 641 184)
Specificaties
Diameter zaagbladboring
30 mm
Geleiderail compatibel
ja
Gewicht
5.2 kg
Leerlaufdrehzahl, bis zu
5000 min-1
Leerlaufdrehzahl, von
2300 min-1
Max. snijcapaciteit in hout (45°)
48 mm
Max. snijcapaciteit in hout (90°)
65 mm
Meetonzekerheid k (zagen in hout)
1.5 m/s²
Nominaal ingangsvermogen
1800 W
Onbelast toerental
2300 - 5000 min-1
Spanning, elektrisch
230 V
Trillingsemissie ah [houtzagen]
3.0 m/s²
Verpackungsabmessungen (Breite x Länge x Höhe)
353 x 444 x 240 mm
Zaagbladdiameter
190 mm
