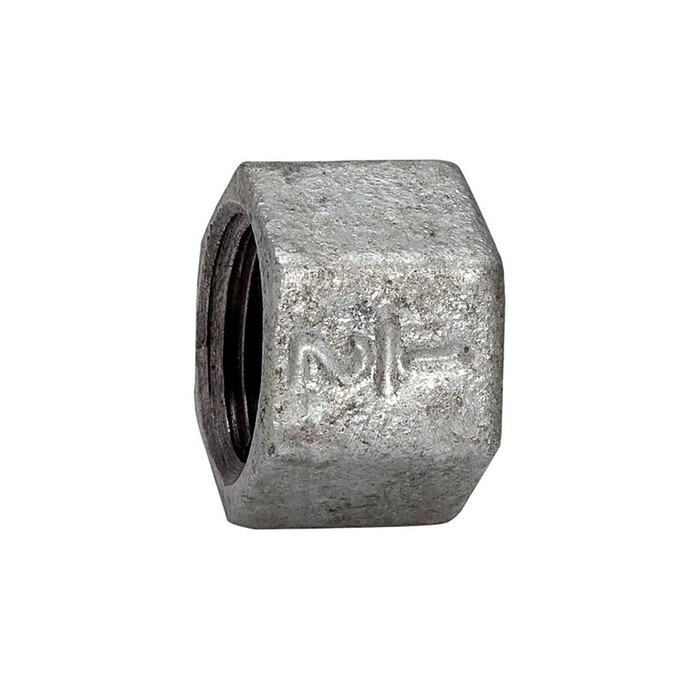

Kap nr. 300 gegalvaniseerd
I Rp 3" ISO/EN T1Art.-Nr.: 1108311EAN: 4047322395410
VPE (KTR): 24 STKVPE (VE): 24 STKAantal: ​​
1 STKPakketgeschikt​
Beschrijving
Cap 300, IT, Rp 3, Operating temperature -20°C to 300°C, black malleable cast iron, Hot-dip galvanised, DIN EN 10242Acc. to DIN EN 10242 (formerly DIN 2950)The classic - and the most popular - screw fitting series for pipe construction. These fittings are characterized by their high mechanical strength and surface quality to DIN 2444. They are completely coated with a layer of pure zinc and are therefore suitable for drinking water; they are also protected against rust. These malleable iron fittings are used in machine construction, exterior lines, cold water lines and heating lines. Working minimal temperature = -20 °C, 25 bar. Working pressure for temperature range from -20 °C to 120 °C: 25 bar. Working pressure for temperature range from 120 °C to 300 °C: 20-25 bar.
Specificaties
Materiaal
Zwart smeedbaar gietijzer B350-10 Ontwerpsymbool A
Oppervlakte
Thermisch verzinkt
Schroefdraad
Rp 3
Standaard draad
volgens ISO 7-1
Temperatuurbereik max.
300 °C
Temperatuurbereik min.
-20 °C
