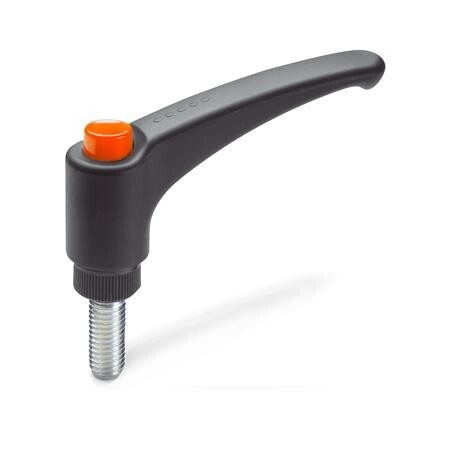

Spanhendel met ontgrendelingsknop, oranje

GN 603-78-M10-20-DOR Elesa 234516-C2
Art.-Nr.: 1075916Leveranciersnummer: 603-78-M10-20-DOREAN: 4045525301313

VPE (VE): 10 STKAantal: ​​ 1 STKPakketgeschikt
Artikel in 707 varianten beschikbaar:
Op korte termijn verkrijgbaar

Beschrijving
Adjustable hand levers GN 603, like all the products of the Ergostyle® range, are renowned for their good style but also their ergonomical shape. They are like all adjustable hand levers ideal whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged. The releasing button offers an easy disengagement. Its use is limited to applications where dismantling of the lever for installation is not required.
Specificaties
Aansluitschroefdraad d1
M 10
Draadlengte l2
20
Gewicht
0.058 kg
Greeplengte l1
78
Instelbaar
True
Kleur (uitschakelknop)
DOR - oranje, RAL 2004, glanzend
Materiaal handvat
PA - kunststof, polyamide
RoHS
Ja
d2
19
d3
24.5
h1
47
h2
12
h3
54
