Producten
Bosch

Combilaser GCL 2-15

RM1 draaibare beugel in doos Bosch 0.601.066.E00
Art.-Nr.: 1438807Leveranciersnummer: 0601066E00EAN: 3165140836371

Aantal: ​​ 1 STKPakketgeschikt
Op korte termijn verkrijgbaar

Beschrijving

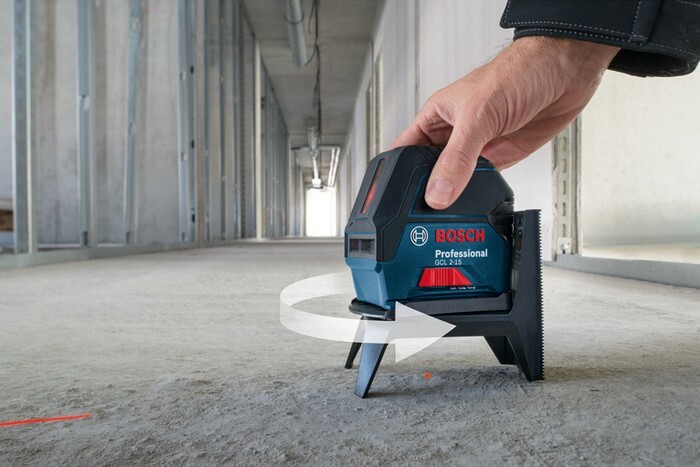

Combi Laser GCL 2-15, The combi laser GCL 2-15 Professional convinces through its compact design and is especially suitable for short-distance levelling applications. By projecting both horizontal and vertical laser lines and two centred plumb points, this combi laser supports completing levelling tasks quickly. Its plumb points make precise transfer applications easy and convenient. Aligning the laser lines around the plumb points is simple thanks to its rotating mount RM 1 Professional. The GCL 2-15 Professional is suitable for various applications such as mounting shelves and windows, installing drainage pipes, and laying floors. It also offers point transfers for light mountings. The GCL 2-15 Professional provides a line laser working range of up to 15 m and self-levels in less than 4 seconds. This combi laser is ideal for use with the RM 1 Professional, which can be swiftly attached via a simple slide mechanism. It is robust thanks to IP54 dust and splash water protection. When switching off the tool, the pendulum’s lock-mechanism allows for safe transportation. Laser target plate, Protective Bag, Rotating mount RM 1 Professional (0 601 092 600), 3 x 1.5 V LR6 battery (AA)
Specificaties
Bedrijfstemperatuur
-10 - 50 °C
Bedrijfstijd, max.
8 u in cross-line werking
Gewicht, ca.
0.49 kg
Kleur laserlijn
rood
Laserdiode
630 - 650 nm, < 1mW
Laserklasse
2
Nivelleernauwkeurigheid
± 0,3 mm/m* (* plus toepassingsafhankelijke afwijking)
Nivelleertijd
4 s
Opslagtemperatuur
-20 - 70 °C
Projectie
2 regels / 2 punten
Soldeerpunt nauwkeurigheid
± 0,7 mm/m* (* plus toepassingsafhankelijke afwijking)
Statiefschroefdraad
1/4", 5/8"
Stof- en spuitwaterbescherming
IP 54
Stroomvoorziening
3 x 1,5 V LR6 (AA)
Werkbereik
tot 15 m
Werkbereik laserstip, max.
10 m (onder)
Werkbereik, teken
tot
Werkbereik, waarde
15 m
Zelfnivelleringsbereik
± 4°
