Beschrijving

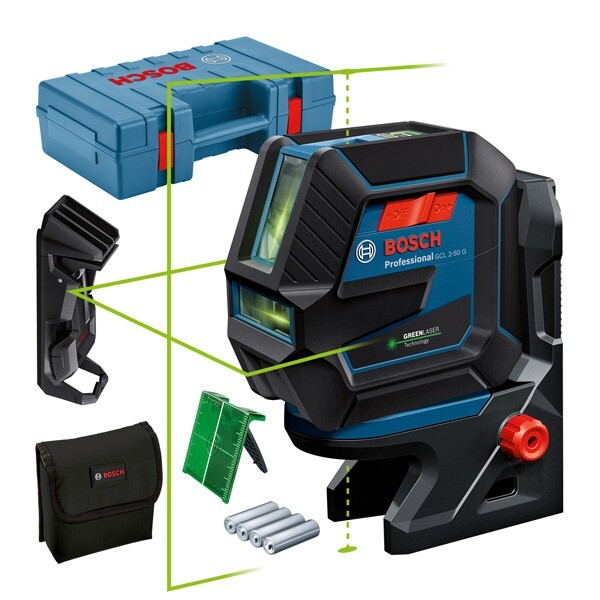

Combi Laser GCL 2-50 G, The jobsite-ready combi laser GCL 2-50 G Professional makes alignment and transfer simple. Stay focussed on the task thanks to durable design, featuring a rubberised housing for better protection of the recessed glasses and dust and splash water protection IP 64. The ON/OFF switch and one-button keypad make for ease of use. For starting right away, the GCL’s laser receiver mode is always activated. Highly visible green laser lines and green plumb points give enhanced visibility in brighter environments. Fast and secure mounting thanks to the RM 10 Professional rotating mount with very strong magnets. The RM 10 Professional enables the precise positioning of laser lines around plumb points. The robust GCL 2-50 G Professional is ideal for many applications such as building framework for drywall, mounting sockets and doors, and point transfer for light mounting. The GCL 2-50 G Professional provides working range lines up to 15 m (dots: up to 10 m), expandable up to 50 m with the optional receiver LR 7 Professional. The RM 10 Professional is compatible with the optional DK 10 Professional ceiling clip for ceiling applications or fine height adjustments. Rotating Mount RM 10 Professional (0 601 092 A00), Ceiling Clip DK 10 Professional, Laser target plate, Pouch, 4 x 1.5 V LR6 battery (AA), Carrying case
Specificaties
Bedrijfstemperatuur
-10 - 45 °C
Compatibele laserontvanger
LR 7
Gewicht, ca.
0.58 kg
Kleur laserlijn
groen
Kleur van de schietloodpunten
groen
Laserklasse
2
Nivelleernauwkeurigheid
± 0,3 mm/m* (* plus toepassingsafhankelijke afwijking)
Nivelleertijd
4 s
Opslagtemperatuur
-20 - 70 °C
Projectie
2 regels / 2 punten
Soldeerpunt nauwkeurigheid
± 0,7 mm/m* (* plus toepassingsafhankelijke afwijking)
Statiefschroefdraad
1/4"
Stof- en spuitwaterbescherming
IP 64
Stroomvoorziening
4 x 1,5 V LR6 (AA)
Werkbereik
tot 15 m
Werkbereik laserstip, max.
10 m
Werkbereik met ontvanger
tot 50 m
Werkbereik met ontvanger, teken
tot
Werkbereik met ontvanger, waarde
50 m
Werkbereik, teken
tot
Werkbereik, waarde
15 m
Zelfnivelleringsbereik
± 4°
