Ganter

Kogelschijf roestvrij staal 1.4305

DIN 6319-6,4-C-NI voor M 6
NI - Roestvrij staal
Art.-Nr.: 1209047Leveranciersnummer: DIN 6319-6,4-C-NIEAN: 4045525324701

VPE (VE): 25 STKAantal: ​​ 1 STKPakketgeschikt
Artikel in 33 varianten beschikbaar:
Op korte termijn verkrijgbaar

Hoe zoek je naar dit artikel?
Beschrijving

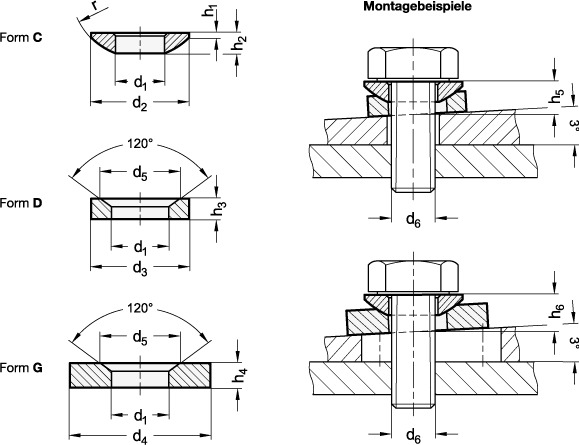

Stainless steel spherical washers and dished washers DIN 6319 are used for clamping on non-parallel surfaces. Thanks to the material used, the spherical washers and dished washers are generally suited for aggressive environmental conditions. The dished washers type G with enlarged outside diameter are mainly used on elongated holes. When utilizing stainless steel hexagon nuts with spherical seating DIN 6330 type B the spherical washer is redundant.
Specificaties
Boringdiameter vorm C d1
6.4
Gewicht
0.001 kg
Materiaal
NI - Roestvrij staal
R
9
RoHS
Ja
Vorm
C - Bolvormige schijf
d2
12
h1
0.7
h2
2.3
h5
4.2
