Beschrijving

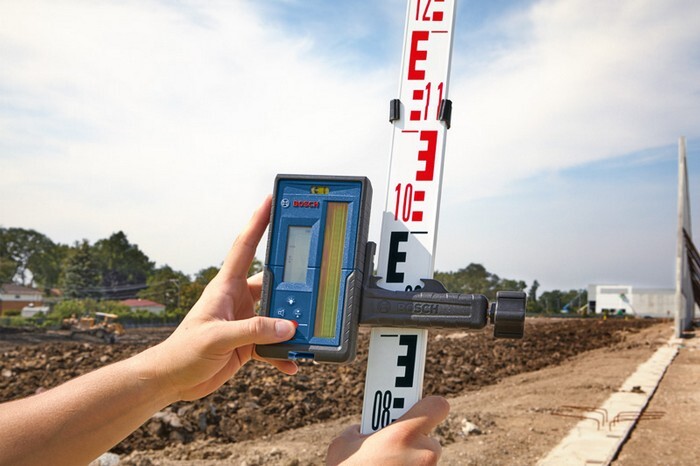

Laser Receiver LR 45, The robust laser receiver LR 45 Professional enables straightforward detection of green and red laser beams. The device’s long reception area and dual-sided backlit display with an mm offset feature ensure hassle-free laser detection. It is always ready for use on tough jobsites: an ergonomic soft grip and IP66 protection against dust and water are ideal to withstand rough conditions. Six different sensitivity settings and three volume settings (incl. off) offer the flexibility to easily adjust to any jobsite environment. Suitable for both indoor and outdoor use, the LR 45 Professional is the ideal helper for tasks as varied as excavation, landscaping, façade work, concrete pouring, HVAC installation, and many more. The LR 45 Professional has a long working range of up to 300 m. The integrated spirit level further simplifies any levelling job.
Specificaties
Bereik
300 m
Bereik, ontvanger
< 300 m
Bereik, ontvanger, teken
<
Bereik, ontvanger, waarde
300 m
Bereik, tot
30 m
Fernbedienung
nein
Geschikt voor
GRL 300 HV, GRL 300 HVG, GRL 400 H Professional
Meetnauwkeurigheid (fijn/grof)
± 1 mm, ± 2 mm, ± 3 mm, ± 5 mm, ± 7 mm, ± 10 mm
Meetnauwkeurigheid fijn
± 1, ± 2, ± 3, ± 5, ± 7, ± 10 mm
Stof- en spuitwaterbescherming
IP 66
Stroomvoorziening
2 x 1,5 V LR6 (AA)
Type ontvanger
Roterende laser
Werkzeugabmessungen (Länge)
158 mm
