Beschrijving

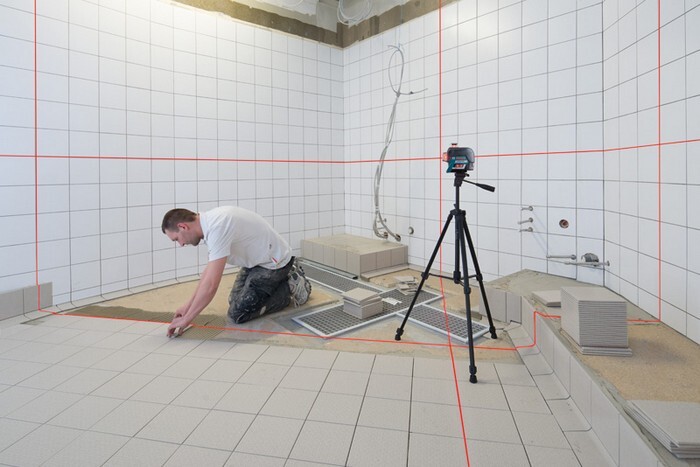

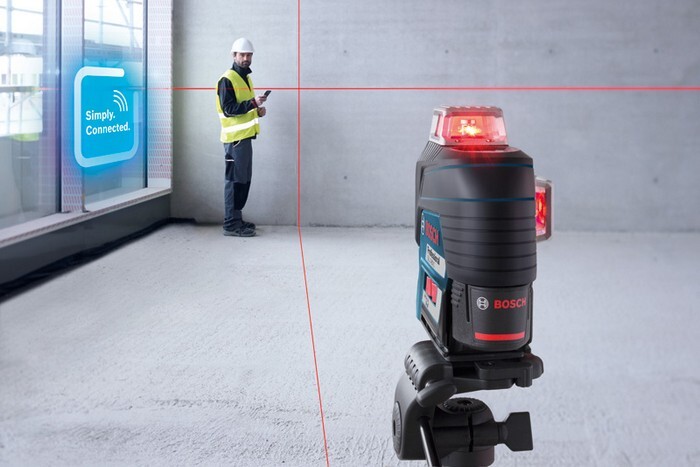

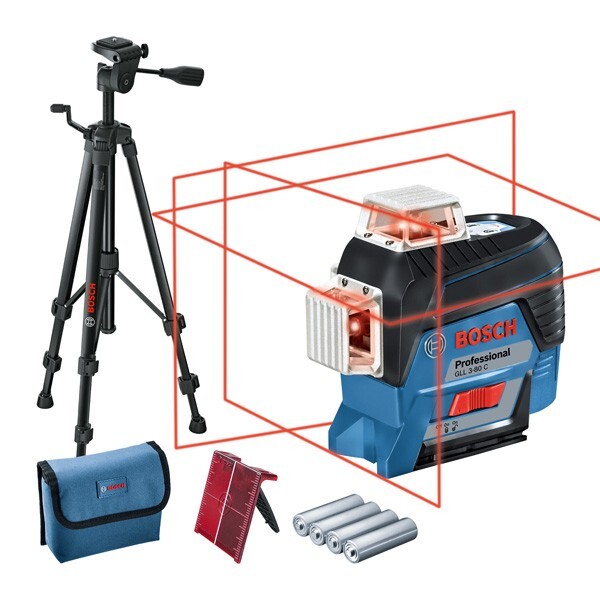

Line Laser GLL 3-80 C, The line laser GLL 3-80 C Professional is simply connected and projects 3 x 360° lines for excellent visibility. Innovative CAL Guard monitoring and a Bluetooth®-connected smartphone app allow for remote-control use as well as contactless adjustments and high precision. High-powered diodes ensure high visual clarity while its 3 x 360° lines allow simultaneous horizontal and vertical levelling for highly efficient work. This line laser is developed for building floors, installing windows, mounting shelves,laying drainage pipes, building framework for drywall, and laying tiles. Due to the GLL 3-80 C Professional's Dual Power Source, it can be operated both with 12 V Li-ion battery and with standard alkaline batteries for added flexibility. It is capable of levelling itself on non-level surfaces up to +/- 4° in less than 4 seconds with excellent precision of ± 0.2 mm/m*/** and has a working range of up to 120 m when using the optional LR 6 or LR 7 Professional receiver. This line laser is compact, easy to handle, and extremely robust. Building tripod BT 150 Professional (0 601 096 B00), AA1 alkaline battery adapter (1 608 M00 C1B), Laser target plate, Pouch, 4 x 1.5 V LR6 battery (AA)
Specificaties
Accuspanning
12 V
Bedrijfstemperatuur
-10 - 40 °C
Bedrijfstijd, max.
8 uur (Li Ion) en 6 uur (4 x AA) in 3-lijnsmodus
Compatibele laserontvanger
LR 6 + 7
Gewicht, ca.
0.9 kg
Kleur laserlijn
rood
Laserdiode
Lijn: 630 - 650 nm, < 10mW
Laserklasse
2
Nivelleernauwkeurigheid
+/- 0,2 mm/m*/** (*voor de vier horizontale snijpunten, **met toevoeging van toepassingsafhankelijke afwijking)
Nivelleertijd
4 s
Opslagtemperatuur
-20 - 70 °C
Projectie
3 x 360° lijn
Statiefschroefdraad
1/4", 5/8"
Stof- en spuitwaterbescherming
IP 54*** (*** exclusief Li-ion batterij en AA1-batterijadapter)
Stroomvoorziening
4 x 1,5 V LR6 (AA)
Werkbereik
tot 30 m
Werkbereik met ontvanger
tot 120 m
Werkbereik met ontvanger, teken
tot
Werkbereik met ontvanger, waarde
120 m
Werkbereik, teken
tot
Werkbereik, waarde
30 m
Zelfnivelleringsbereik
± 4°
