Beschrijving

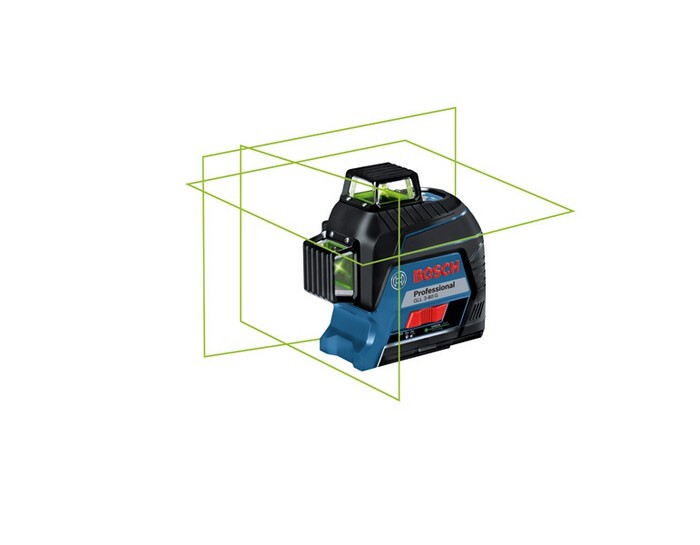

Line Laser GLL 3-80 G, The line laser GLL 3-80 G Professional projects b1old 3 x 360° lines for high visibility. Its bright green lines provide up to four times better visibility than red lines. The tool can be used to set up entire rooms and is perfect for simultaneous horizontal and vertical levelling applications thanks to its three lines, for highly efficient work. An intuitive user interface makes it easy to operate. This tool is designed for various applications including suspending drop ceilings, building floors, installing windows, mounting shelves, laying drainage pipes, building frameworks for drywalls, general construction, and laying tiles. The GLL 3-80 G Professional can self-level up to ± 4° in less than 4 seconds, has a precision of ± 0.3 mm/m*/**, and a range of up to 120 m with the optional laser receiver LR 7. It is compact, easy to handle, and robust. 4 x 1.5 V LR6 battery (AA), Laser target plate, Pouch, Carrying case
Specificaties
Bedrijfstemperatuur
-10 - 40 °C
Gewicht, ca.
0.82 kg
Kleur laserlijn
groen
Laserklasse
2
Nivelleernauwkeurigheid
+/- 0,3 mm/m*/** (*voor de vier horizontale snijpunten, **met toevoeging van toepassingsafhankelijke afwijking)
Nivelleertijd
4 s
Opslagtemperatuur
-20 - 70 °C
Projectie
3 x 360° lijn
Statiefschroefdraad
1/4", 5/8"
Stroomvoorziening
4 x 1,5 V LR6 (AA)
Werkbereik
tot 30 m
Werkbereik met ontvanger
tot 120 m
Werkbereik met ontvanger, teken
tot
Werkbereik met ontvanger, waarde
120 m
Werkbereik, teken
tot
Werkbereik, waarde
30 m
Zelfnivelleringsbereik
± 4°
