Ganter

Magnetische stekkers

GN 738-19-G1/4
AL - Aluminium
Art.-Nr.: 1179713Leveranciersnummer: 738-19-G1/4EAN: 4045525742802

VPE (VE): 10 STKAantal: ​​ 1 STKPakketgeschikt
Artikel in 32 varianten beschikbaar:
Op korte termijn verkrijgbaar

Beschrijving

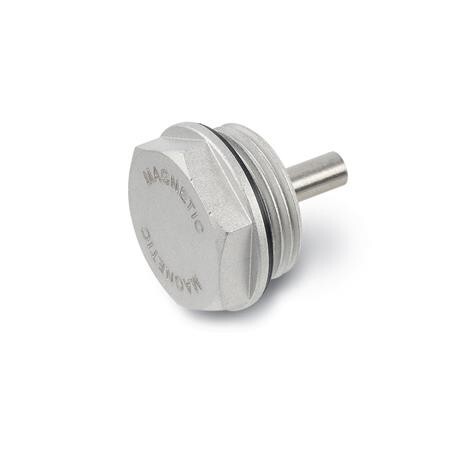

Magnetic plugs GN 738 attract iron particles which might be suspended in the liquid. To avoid breakage or de-magnetising, round rod magnets are fitted with a plastic distance and protection tube. This latter tube has to be removed prior to installing the plug. The sealing ring is retained in a radial undercut in the mating face which prevents it from dropping off and at the same time it cannot extrude under pressure.
Specificaties
Buitendiameter d1
19
Gewicht
0.016 kg
Inch draad d2
G 1/4
L1
8
L2
23
Materiaal
AL - Aluminium
RoHS
Ja
d3
6
e
17.3
l3
30.5
s
15
