Beschrijving

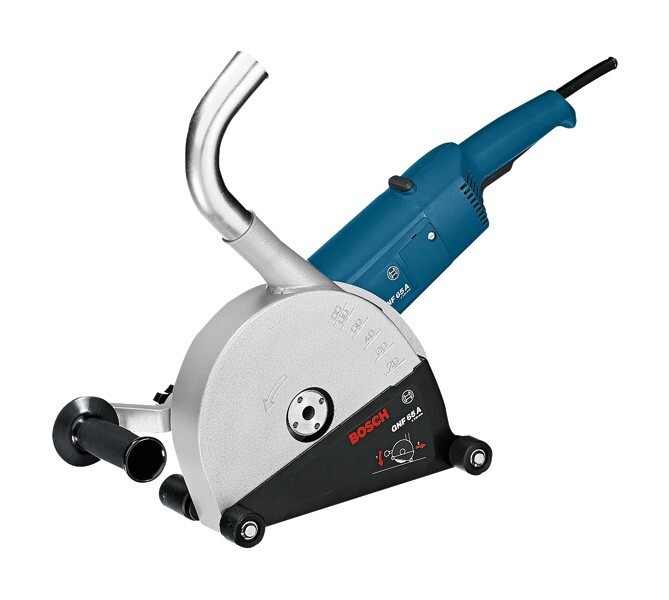

Wall Chaser GNF 65 A, The GNF 65 A Professional is a corded heavy-duty wall chaser. Its incredibly powerful 2,400 W motor enables the highest tool performance in the most demanding of applications and materials. It also features soft start for increased tool control. This wall chaser is extremely robust with sturdy metal components. This tool is intended for wall chasing in concrete and stone. It is compatible with the Bosch Click & Clean dust extraction system. The GNF 65 A Professional’s features include constant speed and spindle lock. Auxiliary handle (2 602 025 075), Backing flange (spare part number 3 609 202 039), Break-out tool (spare part number 3 607 950 000), Carrying case, Round nut (spare part number 3 609 202 040), Suction elbow (1 600 793 007), Two-hole spanner, bent at right angles (1 607 950 004), 3 x spacer, 4 mm (spare part number 3 609 202 041), 4 x spacer, 6 mm
Specificaties
Gewicht
8.4 kg
Leerlaufdrehzahl, von
5200 min-1
Nominaal ingangsvermogen
2400 W
Onbelast toerental
5200 min-1
Schijfdiameter
230 mm
Snijbreedte
3 mm - 4 cm
Snijbreedte, tot
4 cm
Snijbreedte, van
3 mm
Uitgangscapaciteit
1670 W
Verpackungsabmessungen (Breite x Länge x Höhe)
355 x 890 x 230 mm
Verstelbare groefdiepte
20 - 65 mm
Verstelbare groefdiepte, tot
65 mm
Verstelbare groefdiepte, vanaf
20 mm
Werkzeugabmessungen (Länge)
690 mm
